This structure allows for images to be displayed on both the front and back sides, and it can form an

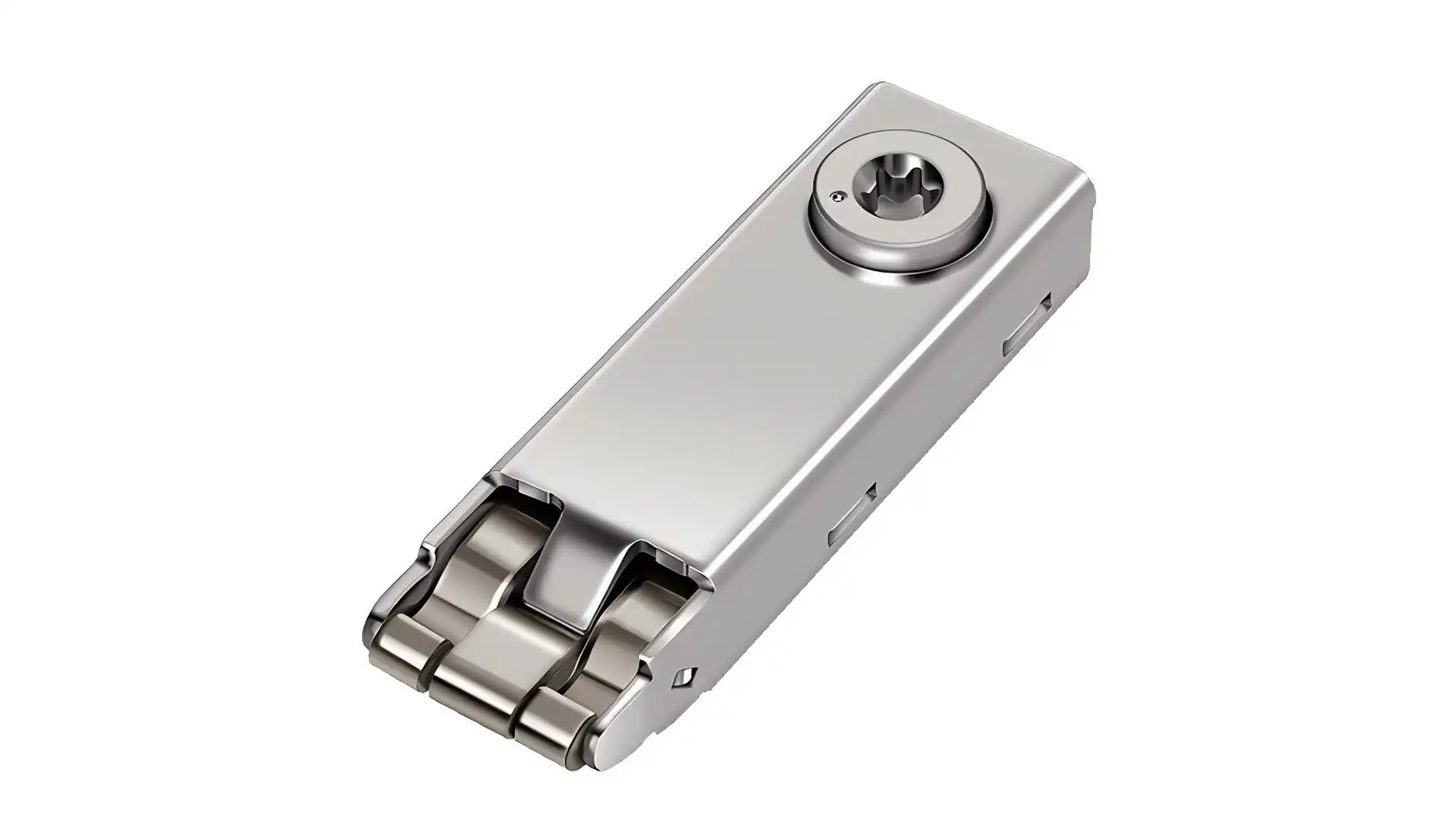

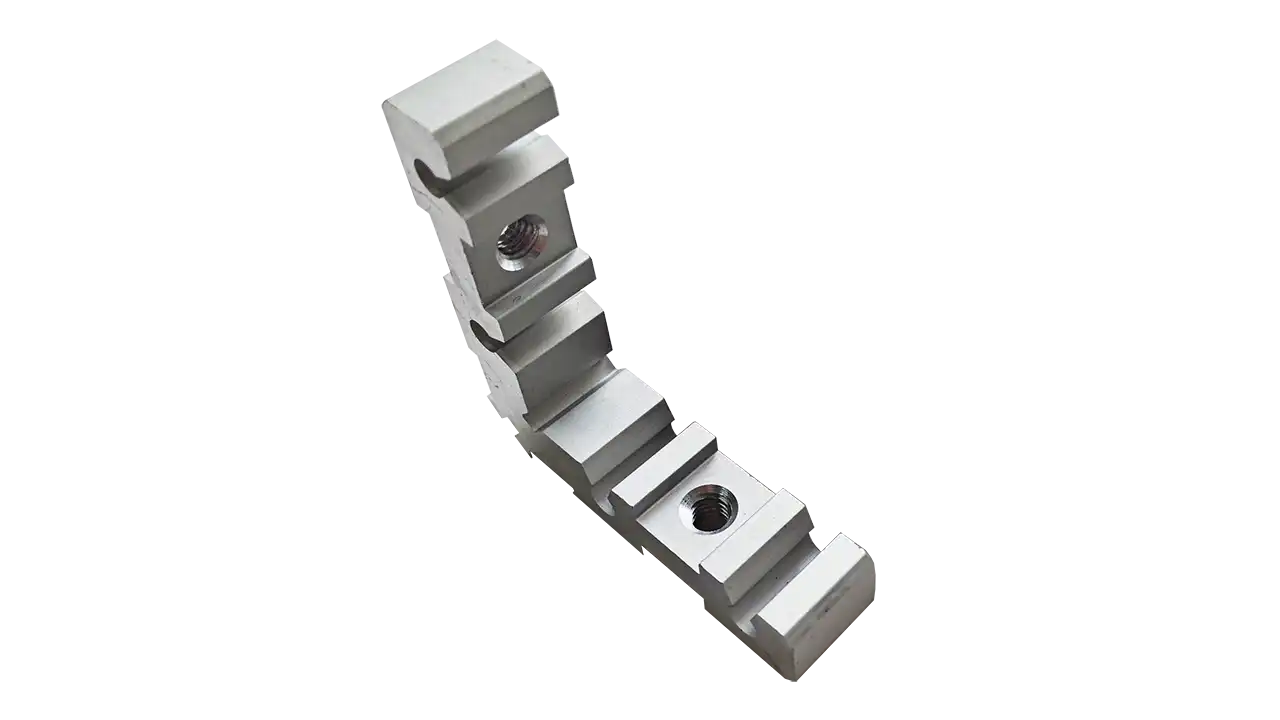

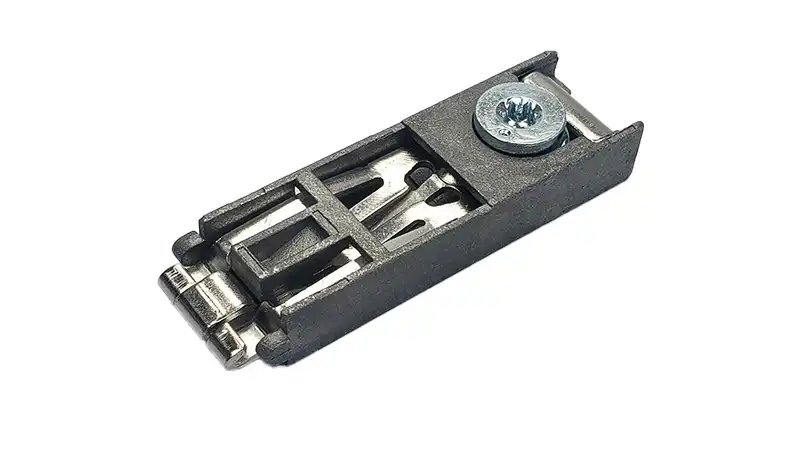

independent structure using angle brackets as connectors.
Where LC-DR-100B fits

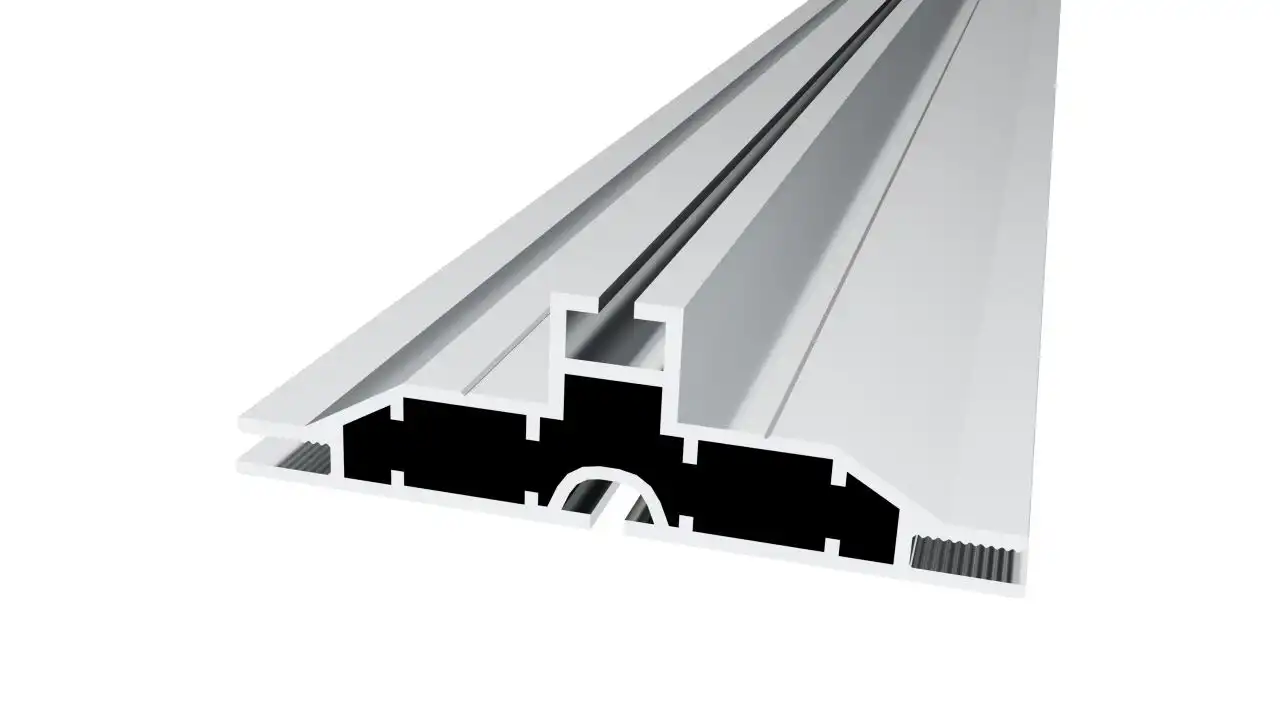

This 100 mm double-sided profile is what we specify for free-standing lightboxes and island booths, because one frame then serves two viewing directions. Front and back are independent channels: printed fabric on one face and a different campaign on the other is a normal build, not a special order.
Build, finish and compatibility

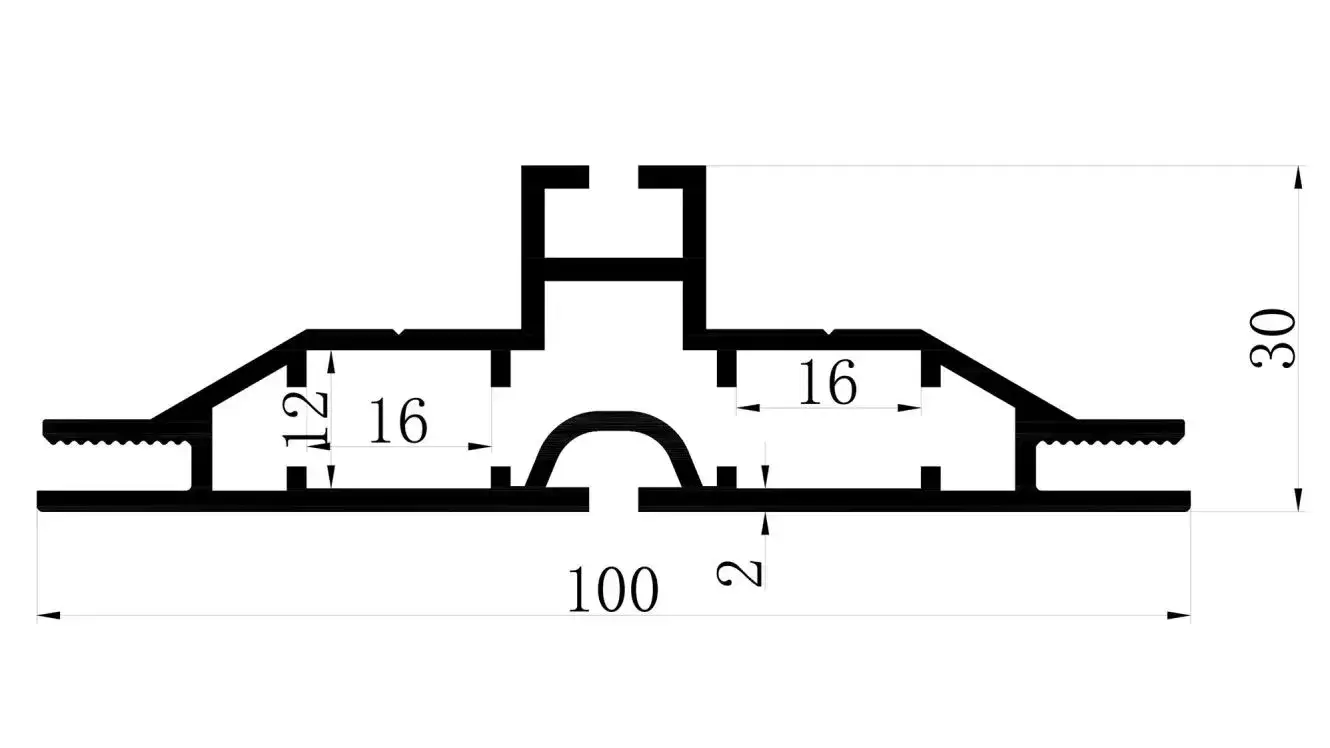

The section is drawn in 6063-T5 aluminum, 1.533 kg per metre and is rigid enough for a 1.2 m span without a centre mullion. The cavity takes a standard LED row plus diffuser, so brightness is specified per square metre rather than guessed at the frame stage.
Cutting, packing and lead time
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
Specification snapshot
LC-DR-100B is a double-sided frame, at 100 mm depth, 1.533 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-100B be lit?
A: Yes — the 100 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
