This structure allows for images to be displayed on both the front and back sides, and it can form an
independent structure using angle brackets as connectors.
Where LC-DR-180A fits
LC-DR-180A is the 180 mm option for a lightbox that has to hold two campaigns at once — arrival halls, food courts and retail windows viewed from both sides. Either face can be swapped independently, so a seasonal change never touches the structure behind it.
Build, finish and compatibility

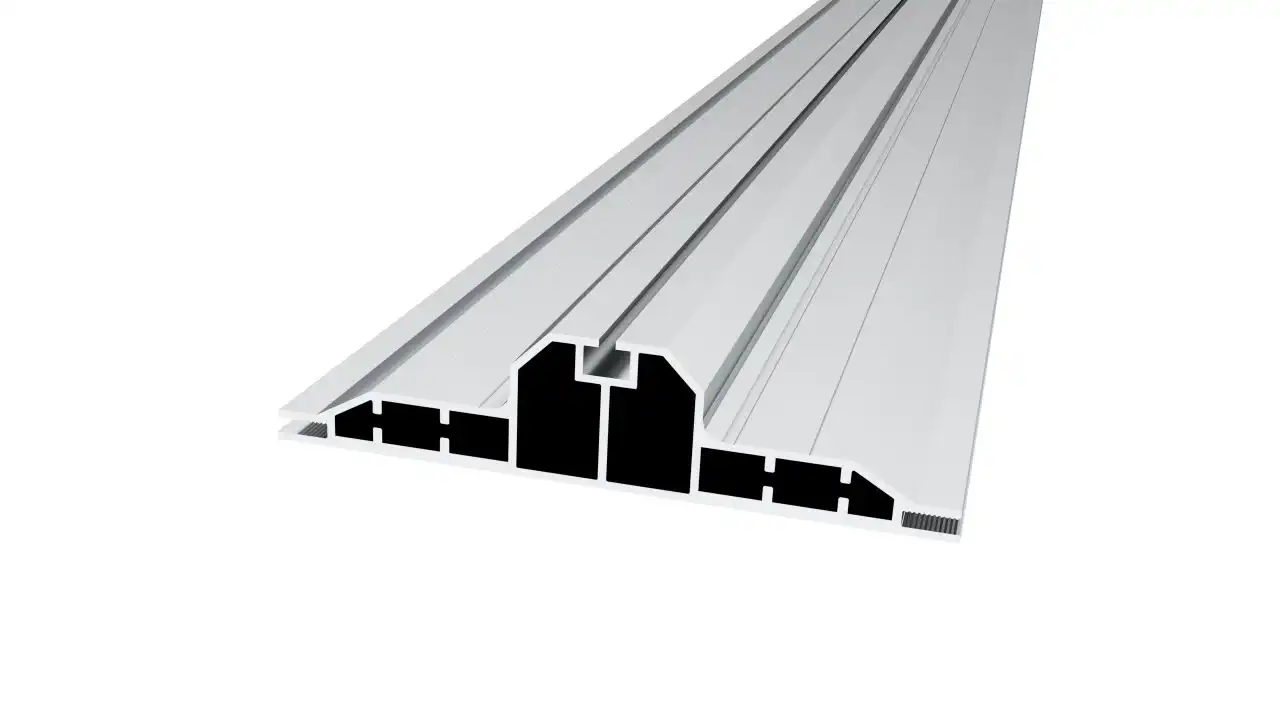

Extruded in 6063-T5 aluminum with mirrored channels and a diffuser groove, 3.553 kg per metre; finish is silver anodised, or powder coated in black, white or a custom RAL. It works with the LED strips and drivers we supply on the same order: strip pitch and wattage are set from the panel depth, and the diffuser sits in its own groove above the strip.
Cutting, packing and lead time
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
Specification snapshot

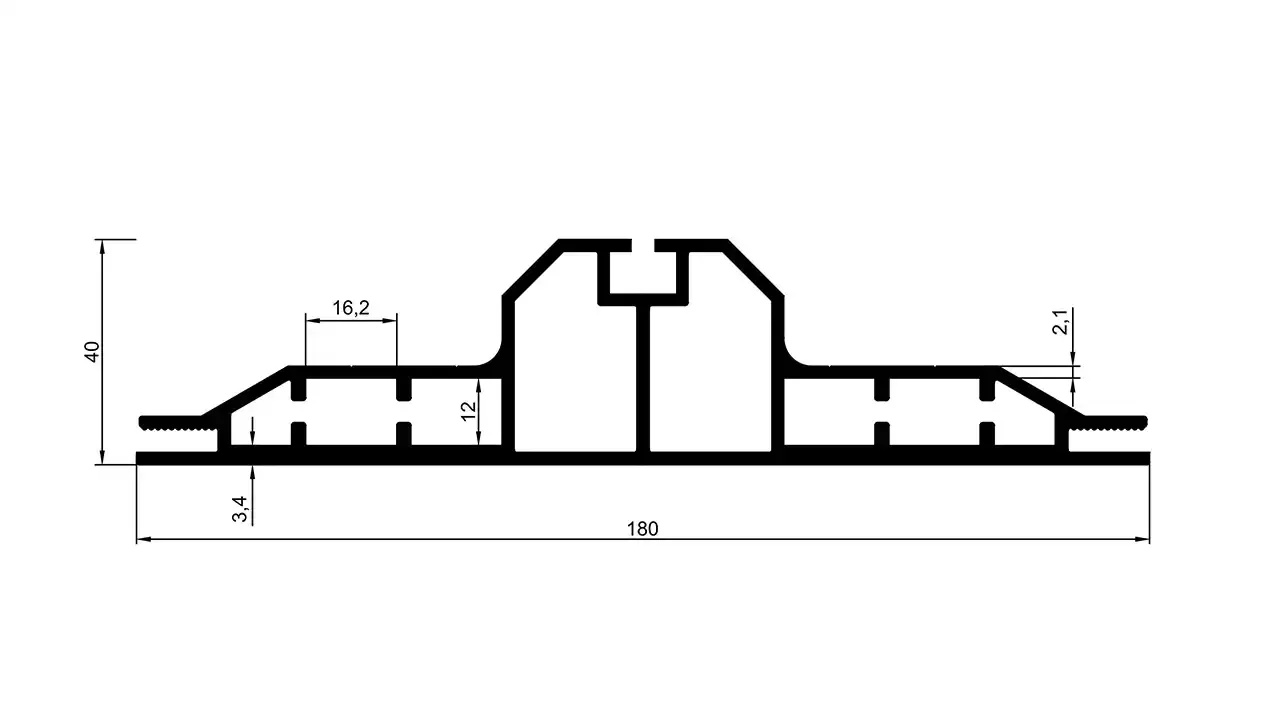

LC-DR-180A is a double-sided frame, at 180 mm depth, 3.553 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-180A be lit?
A: Yes — the 180 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
