Double-Side Freestanding
Screw fixing
No Light
Each bar length can be customized
6063-T5 Aluminum
0.646KG/M

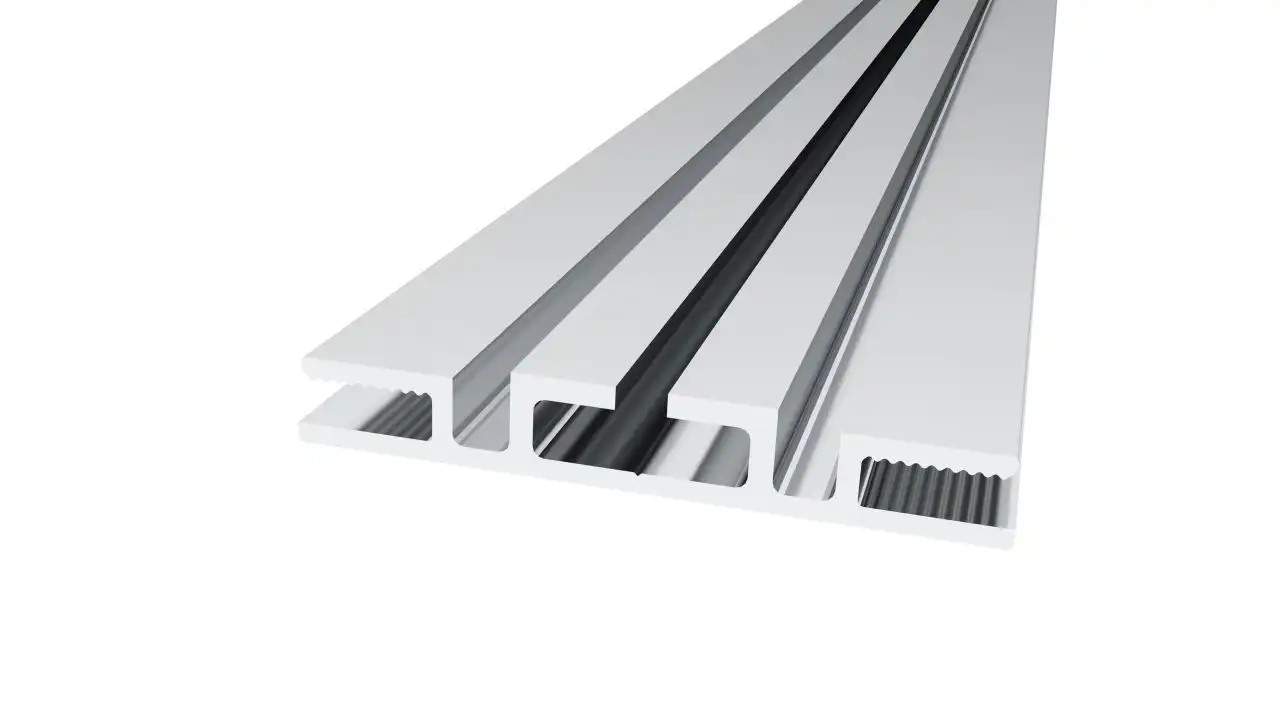

LC-DR-60A wide aluminum profile owns a widened cross-section to improve overall frame stability, specially made for medium-sized indoor and semi-outdoor lightboxes. The thicker wall design effectively reduces frame deformation under daily use, suitable for long-hanging advertising signs. It maintains easy installation features and matches various LED light strips and fabric materials. Perfect for supermarket promotional signs, restaurant menus and semi-outdoor wall lightboxes.
LC-DR-60A is the 60 mm option for a lightbox that has to hold two campaigns at once — arrival halls, food courts and retail windows viewed from both sides. The two faces share one cavity, which halves the frame count against back-to-back single-sided boxes and keeps the lit surface even on both sides.
Both channels are cut in one pass on the same extrusion, so the two faces stay parallel within a fraction of a millimetre. Because the depth is 60 mm, there is room for an edge-lit or back-lit layout, and the diffuser slot keeps the strip off the fabric so hot spots do not print through.
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
LC-DR-60A is a double-sided frame, at 60 mm depth, 0.646 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-60A be lit?
A: Yes — the 60 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
| Item number | LC-DR-60A |
|---|---|
| Depth | 60MM |
| Frame type | Double-sided frame |
| Mounting | Screw fixing |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.646KG/M |
| LED | NO |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Non-woven fabric/kraft paper, different packaging will bring price changes |
