Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.264KG/M

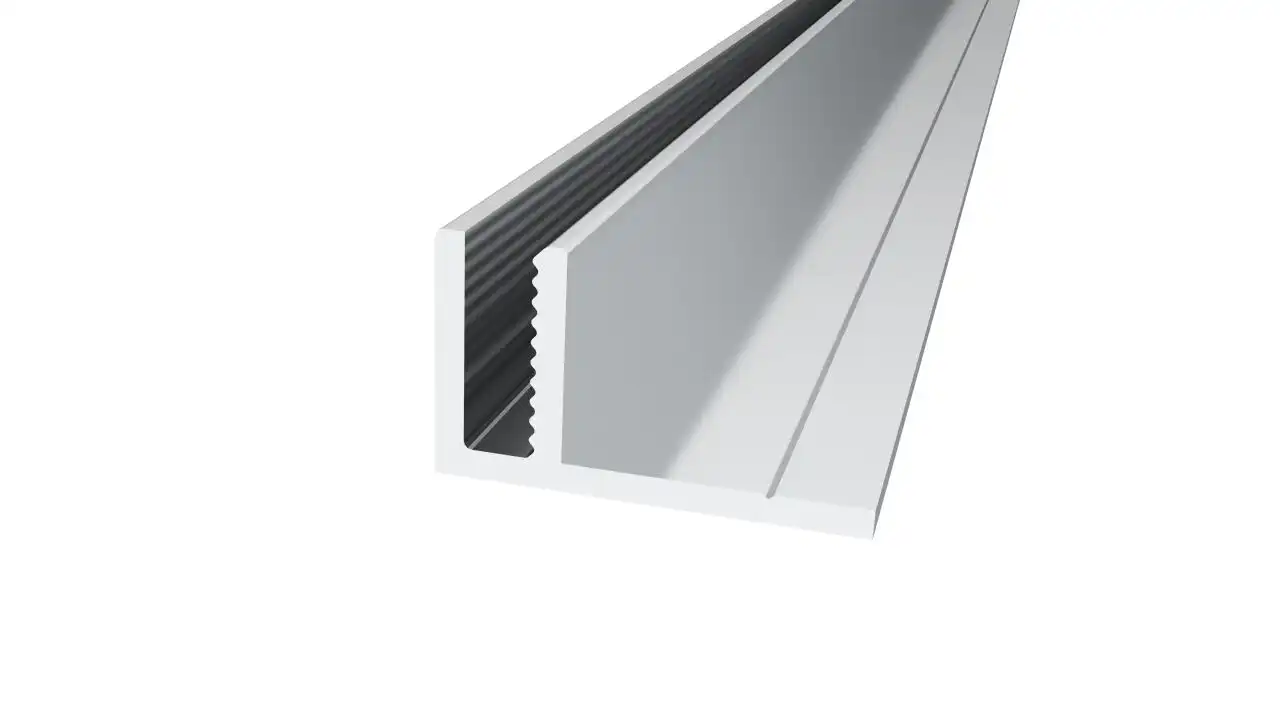

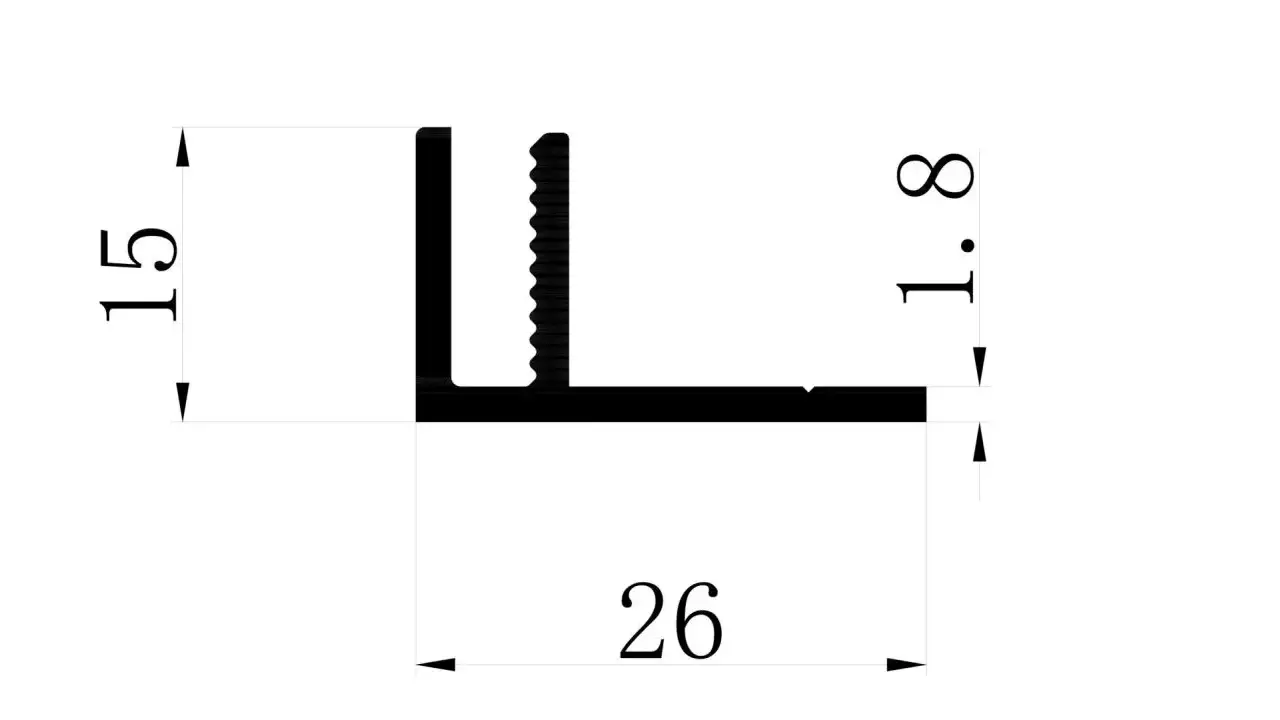

The LC-SR-15B is a 15mm deep single-sided SEG aluminum profile with an optimized, material-efficient cross-section that delivers reliable performance at an economical price point for non-illuminated displays. It maintains the same slim 1.5cm profile depth as the 15A variant with a slightly lighter overall weight, making it an excellent choice for high-volume retail signage projects, bulk poster frame orders and temporary event graphics. Extruded from 6063-T5 aluminum alloy, it provides consistent quality, straightness and ease of assembly. The integrated SEG fabric groove ensures a smooth, tight graphic fit with a clean, finished appearance.
At 15 mm deep, LC-SR-15B sits in the slimmest bracket of the range — the profile we quote for poster swaps in retail aisles, lift-lobby panels and office wayfinding, where a 2 cm shadow line around the graphic is already too much. It carries a single silicone-edge graphic, so the specification stays simple — frame, corners, connectors, fabric — with nothing behind the panel to service later.
Extruded in 6063-T5 aluminum, anodised and cut on our own lines, 0.264 kg per metre; wall thickness and ribbing are sized so the section stays true over a 3–5 m span when the fabric is tensioned. The section is closed at the back, which keeps the display free of light leak and dust; illuminated panels in this depth are handled by the double-sided profiles instead.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-15B is a single-sided frame, at 15 mm depth, 0.264 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-15B take LED lighting?
A: No — LC-SR-15B is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-15B |
|---|---|
| Depth | 15MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.264KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
