Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.374KG/M

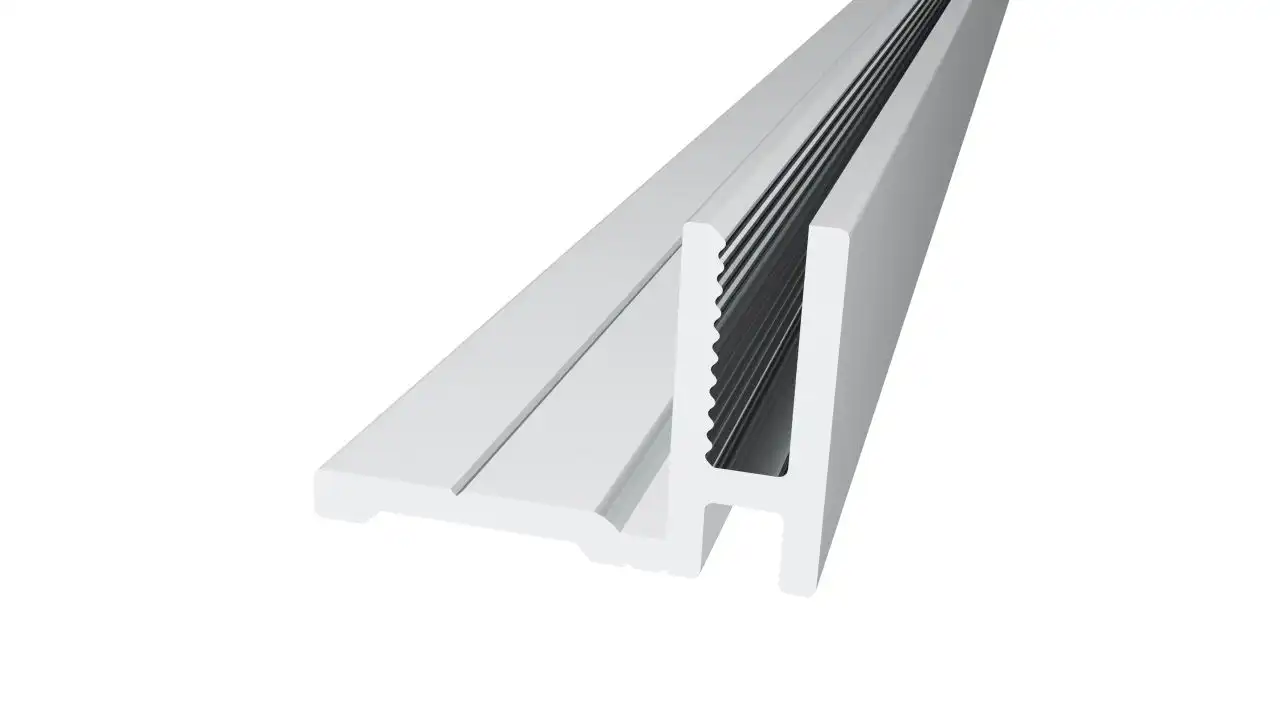

The LC-SR-20A is a 20mm deep single-sided SEG aluminum profile built for non-illuminated fabric display applications that demand a slim profile with solid structural performance. At 2cm deep, it creates a low-profile frame that sits close to walls for a sleek, unobtrusive look ideal for office interiors, retail spaces and hospitality environments. Constructed from heavy-gauge 6063-T5 aluminum alloy, it delivers dependable rigidity for small to medium format wall graphics, informational panels and point-of-purchase displays. The precision-machined SEG channel holds silicone-edged fabric graphics securely in place for a smooth, wrinkle-free surface with clean, crisp edges.
A 20 mm depth makes LC-SR-20A a low-profile single-sided frame: the graphic finishes within a few millimetres of the wall, so the display reads as a printed panel rather than a box. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.

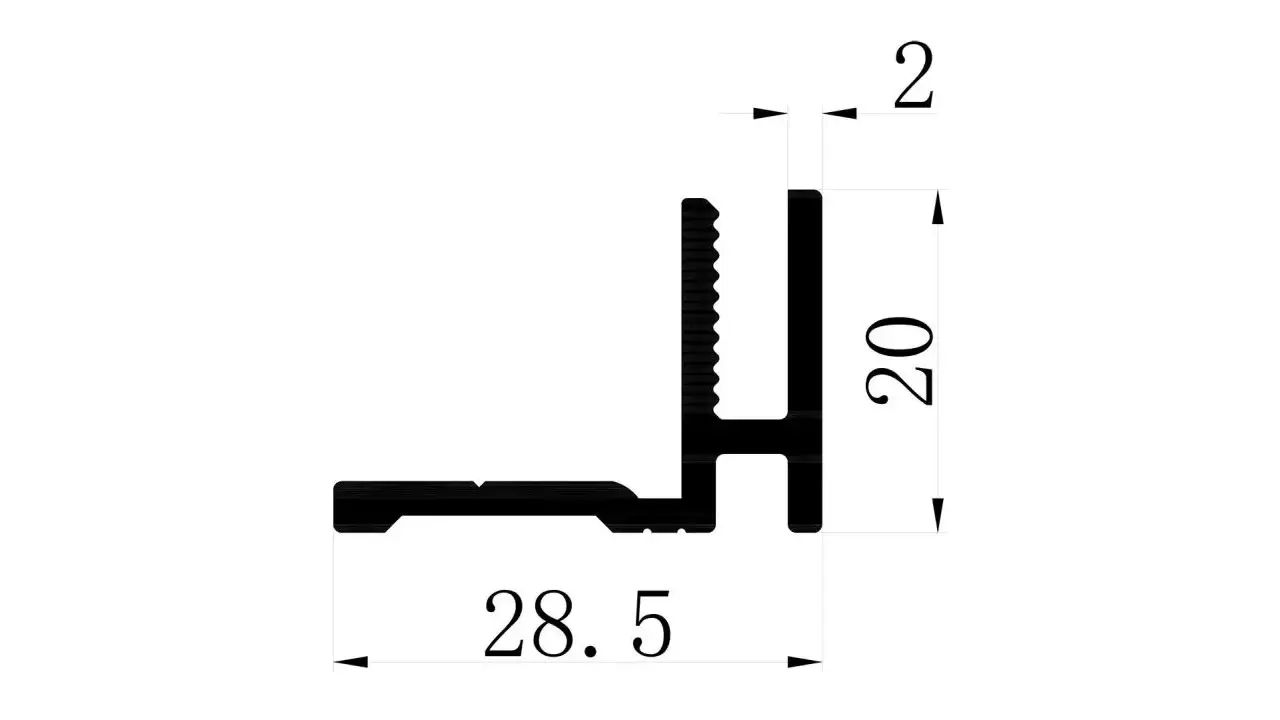

The section is drawn in 6063-T5 aluminum, 0.374 kg per metre; the visible face is flat with a satin finish, and the groove holds a 2–3 mm silicone edge without visible seams at the corners. Corner pieces and connectors from the same family close the frame with a friction fit, so a 1 × 2 m panel assembles on site with an Allen key and no welding.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-20A is a single-sided frame, at 20 mm depth, 0.374 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-20A take LED lighting?
A: No — LC-SR-20A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-20A |
|---|---|
| Depth | 20MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.374KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
