Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
1.55KG/M

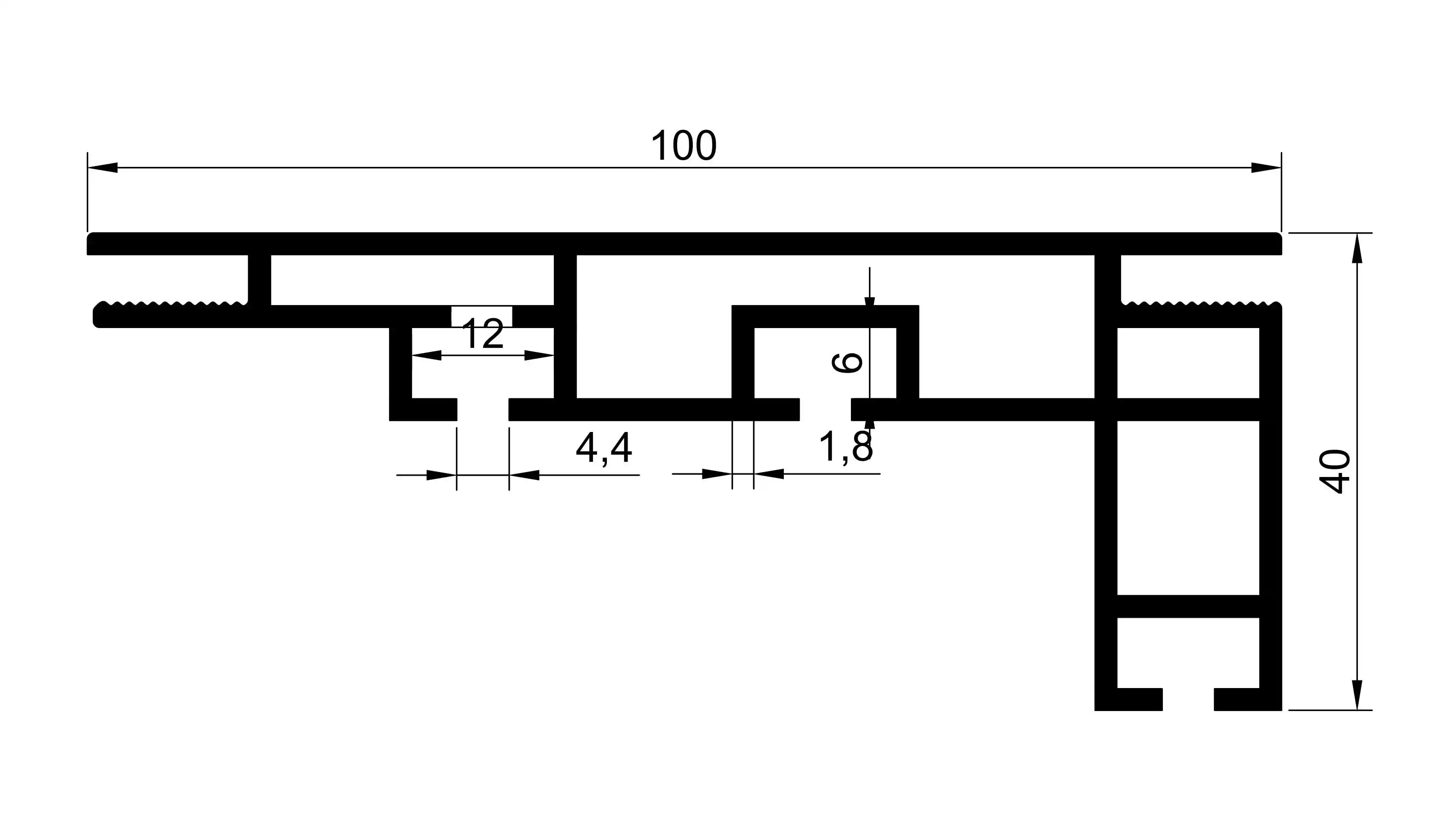

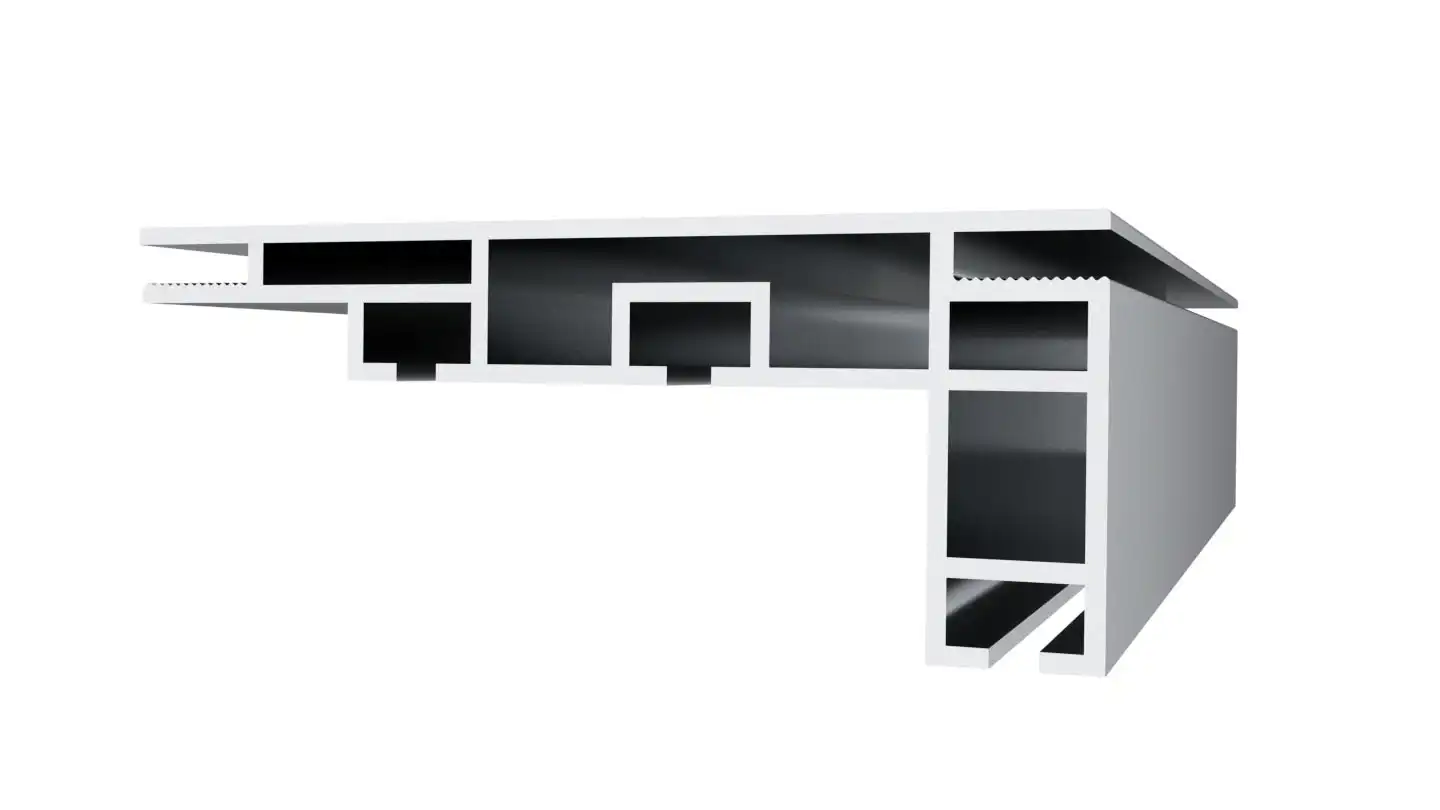

The LC-SR-100B is a refined 100mm single-sided SEG aluminum profile featuring a streamlined cross-section that reduces overall material weight while retaining the full 100mm depth for LED backlighting systems. This optimized design makes it an excellent choice for wall installations where load capacity is limited, or for portable display kits that require frequent transport. Produced from 6063-T5 aluminum alloy, it delivers consistent dimensional accuracy and corrosion resistance for long-term indoor commercial use. Its precision SEG fabric slot ensures wrinkle-free graphic installation and a seamless modern aesthetic. Suitable for backlit advertising panels, wayfinding signage and brand activation displays, it is available in custom cut lengths with multiple surface finish options.
With only 100 mm of build-up, LC-SR-100B is specified where the frame has to disappear — meeting-room graphics, showroom captions and corridor signage that sit flat against plaster or laminate. It carries a single silicone-edge graphic, so the specification stays simple — frame, corners, connectors, fabric — with nothing behind the panel to service later.
The section is drawn in 6063-T5 aluminum, 1.55 kg per metre; the visible face is flat with a satin finish, and the groove holds a 2–3 mm silicone edge without visible seams at the corners. It is a purely mechanical frame — no LED cavity, no diffuser, no driver — so it pairs with printed fabric or paper graphics and needs no electrical provision at all.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-100B is a single-sided frame, at 100 mm depth, 1.55 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-100B take LED lighting?
A: No — LC-SR-100B is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-100B |
|---|---|
| Depth | 100MM |
| Frame type | Single-sided frame |
| Mounting | Standing/ Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.55KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
