Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
0.862KG/M

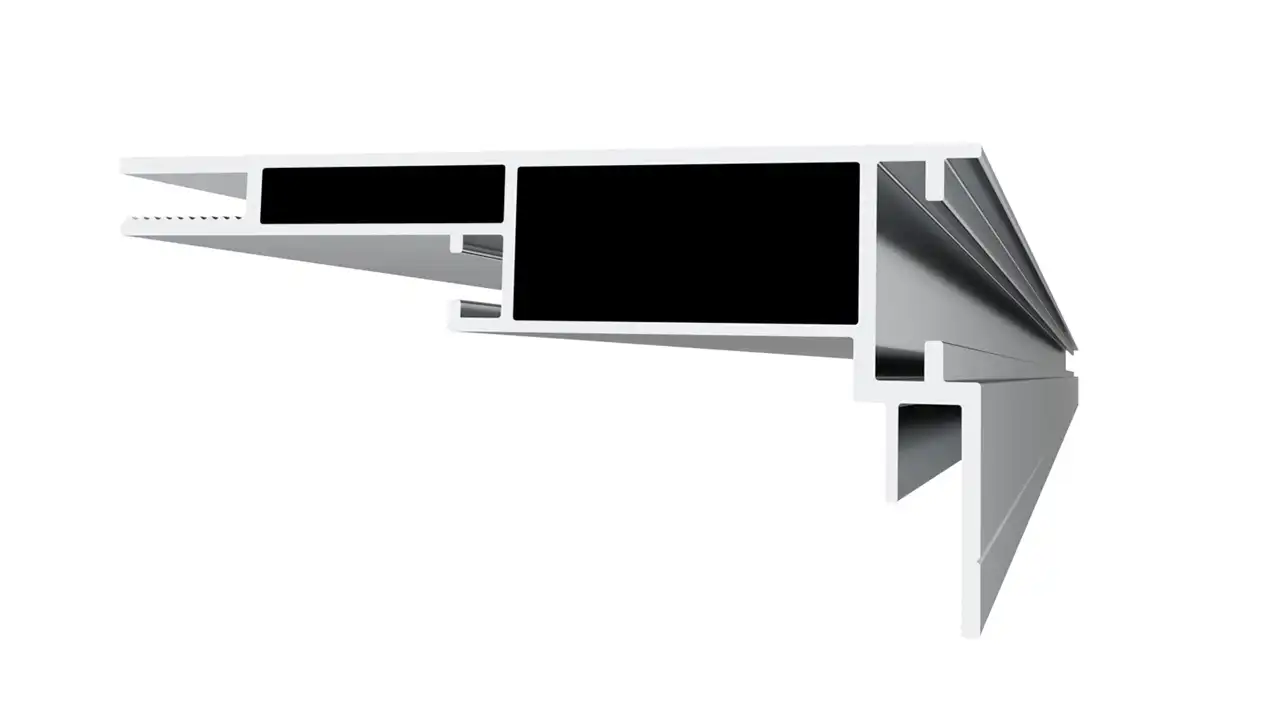

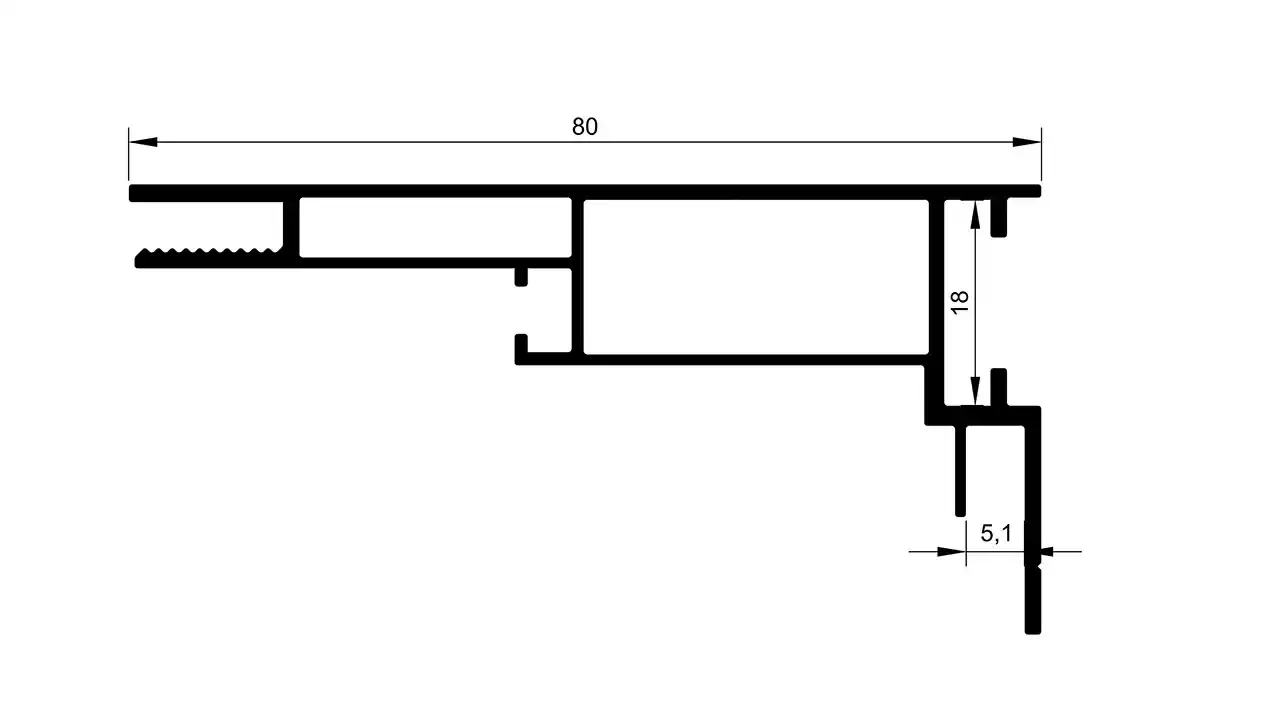

The LC-ST-80CA single-sided SEG aluminum profile is a classic 80mm depth solution for wall-mounted fabric lightbox frames. Made from high-quality 6063-T5 aluminum alloy at 0.862KG per meter, it delivers solid structural performance and is compatible with sandblasted anodized and sprayed surface treatments for flexible appearance options. This profile is designed for standard silicone edge graphic systems, supports built-in LED strip backlighting, and assembles efficiently with dedicated angle connectors. It is widely applied to retail in-store advertising, commercial signage, exhibition booth displays and indoor decorative light walls, with customizable bar lengths and custom color options available.
With only 80 mm of build-up, LC-ST-80CA is specified where the frame has to disappear — meeting-room graphics, showroom captions and corridor signage that sit flat against plaster or laminate. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.
Extruded in 6063-T5 aluminum with a machined SEG channel; standard finish is silver anodised, with black, white or a RAL powder coat available on request, 0.862 kg per metre. It mates with the corner set of the same family and with standard connectors, so a bespoke shape is cut rather than tooled.
We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-ST-80CA is a single-sided frame, at 80 mm depth, 0.862 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-ST-80CA take LED lighting?
A: No — LC-ST-80CA is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-ST-80CA |
|---|---|
| Depth | 80MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.862KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
