Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
1.144KG/M

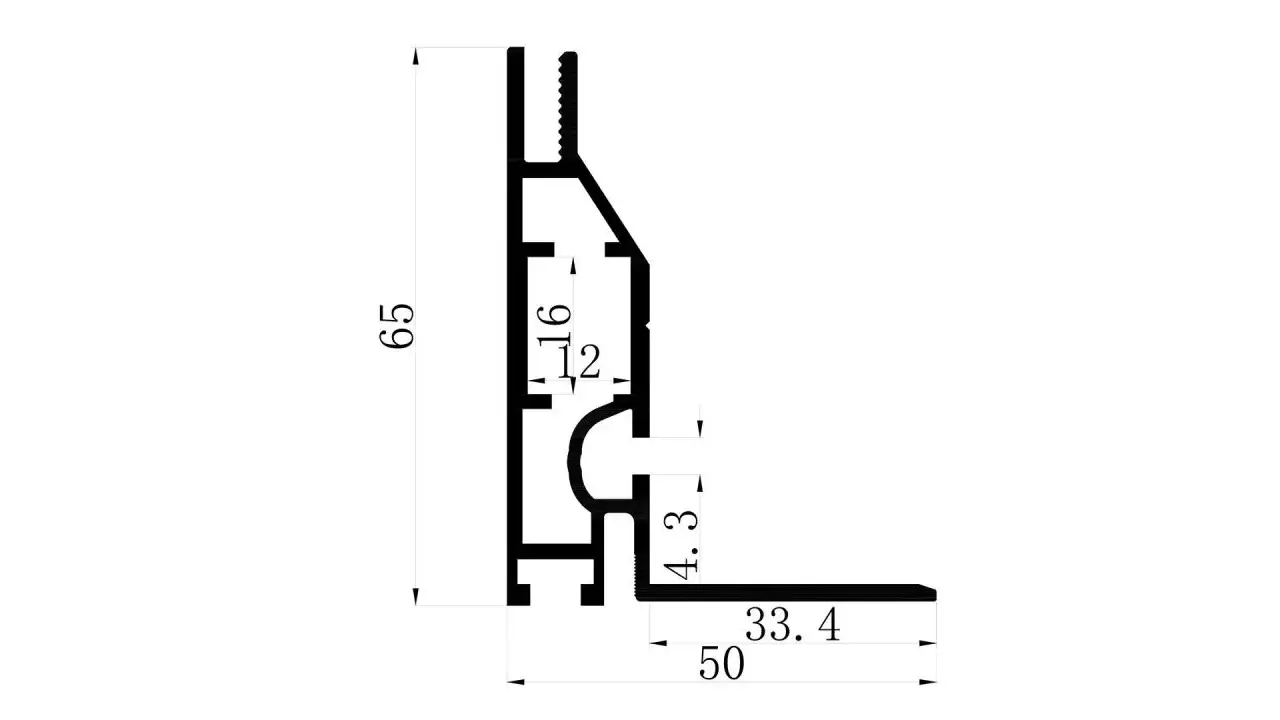

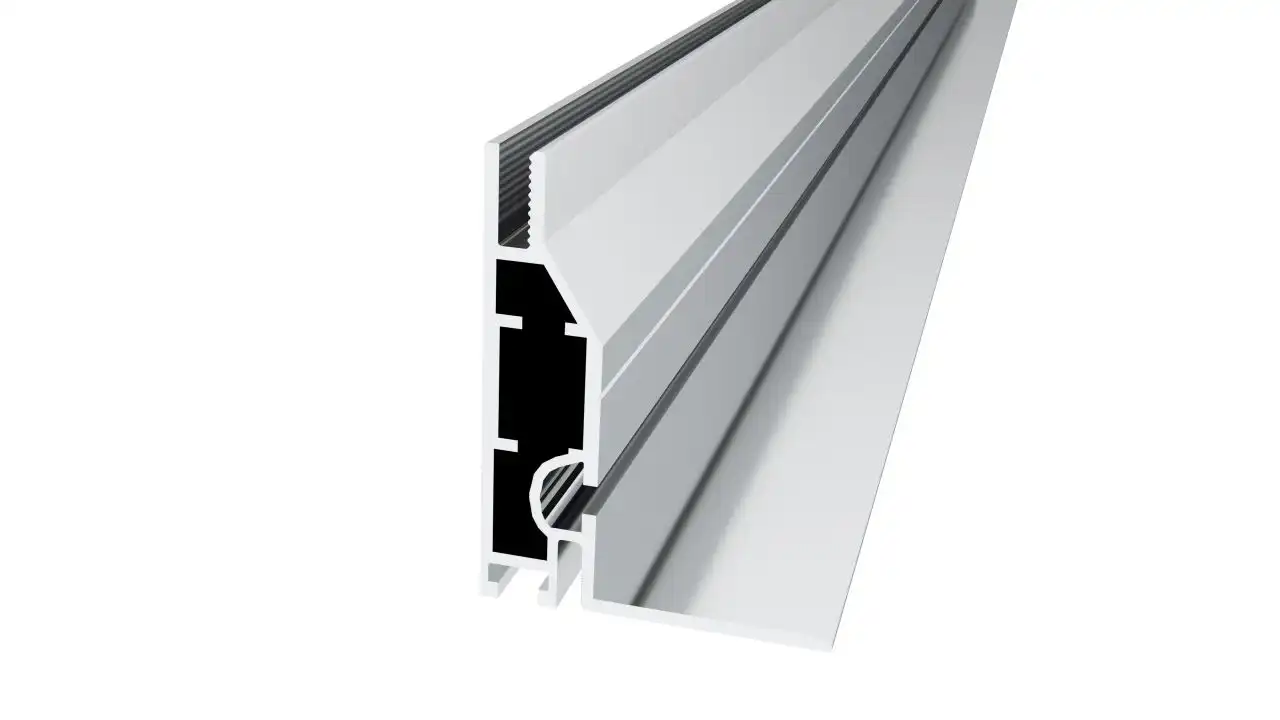

The LC-SR-65A is a 65mm deep single-sided SEG aluminum profile designed for slim-profile backlit lightboxes where wall projection depth is limited. Despite its compact 6.5cm depth, it accommodates low-profile LED lighting systems to deliver crisp, even illumination perfect for indoor advertising, office branding and retail display applications. Manufactured from high-grade 6063-T5 aluminum, it combines sleek, modern aesthetics with reliable structural durability. The precision-machined SEG channel holds silicone-edged fabric graphics firmly in place for a smooth, drum-tight finish with minimal frame visibility. This profile is well-suited for wall-mounted menu boards, directional signage, reception area logos and medium-format promotional displays.
Where a wall already carries a lot of signage, 65 mm is the depth that keeps LC-SR-65A from stacking up: the frame reads as a border, not as a box. Because the face is single-sided, the back of the frame is closed and mounts straight onto plasterboard, MDF or a metal sub-frame with no cavity behind it.
Extruded in 6063-T5 aluminum with a machined SEG channel; standard finish is silver anodised, with black, white or a RAL powder coat available on request, 1.144 kg per metre. It is a purely mechanical frame — no LED cavity, no diffuser, no driver — so it pairs with printed fabric or paper graphics and needs no electrical provision at all.
We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-65A is a single-sided frame, at 65 mm depth, 1.144 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-65A take LED lighting?
A: No — LC-SR-65A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-65A |
|---|---|
| Depth | 65MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.144KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
