Double-Side Freestanding
Fixed with connectors
No Light
Each bar length can be customized
6063-T5 Aluminum
1.035KG/M

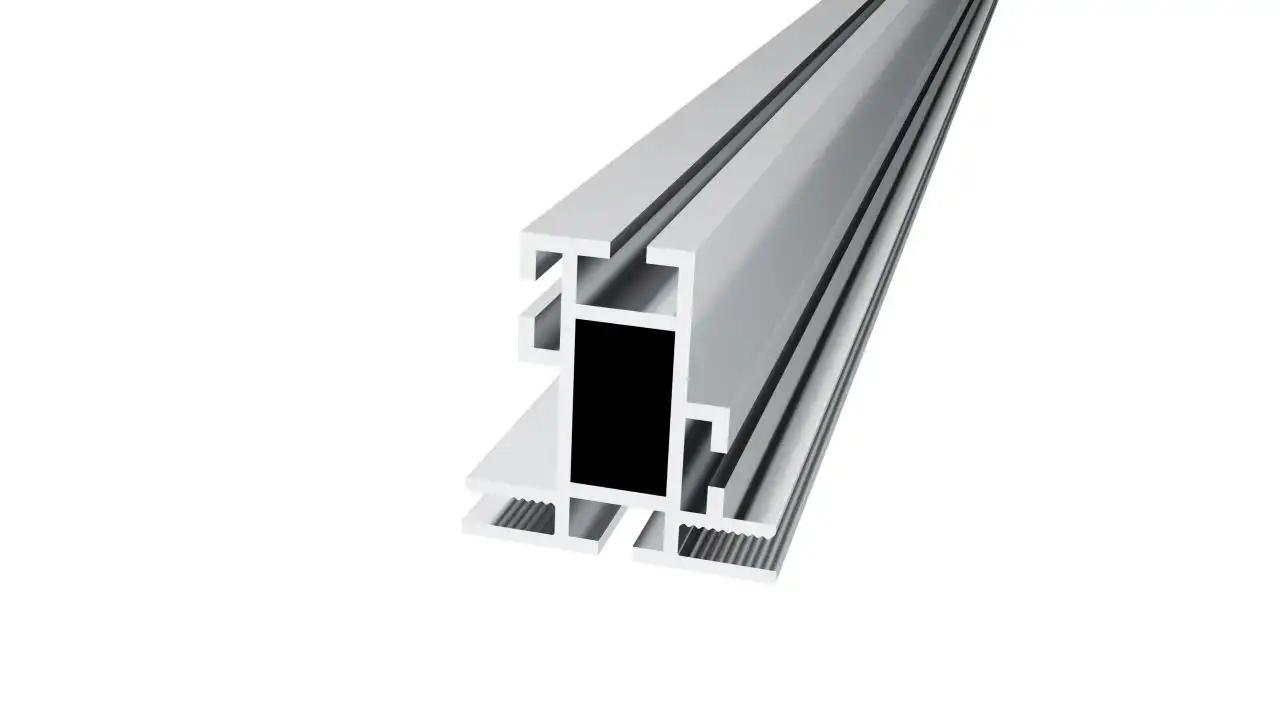

LC-DR-40B reinforced aluminum profile adopts an optimized thickened structure compared with standard slim frames. It delivers better load-bearing capacity while keeping a slim appearance, perfectly matching medium-sized indoor lightboxes and corridor advertising signs. The precise extrusion process ensures tight splicing and smooth surface, no burrs for safe installation. This profile works great for office building signs, shop window displays and indoor promotional frames.
This 40 mm double-sided profile is what we specify for free-standing lightboxes and island booths, because one frame then serves two viewing directions. Either face can be swapped independently, so a seasonal change never touches the structure behind it.
Both channels are cut in one pass on the same extrusion, so the two faces stay parallel within a fraction of a millimetre. It works with the LED strips and drivers we supply on the same order: strip pitch and wattage are set from the panel depth, and the diffuser sits in its own groove above the strip.
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.

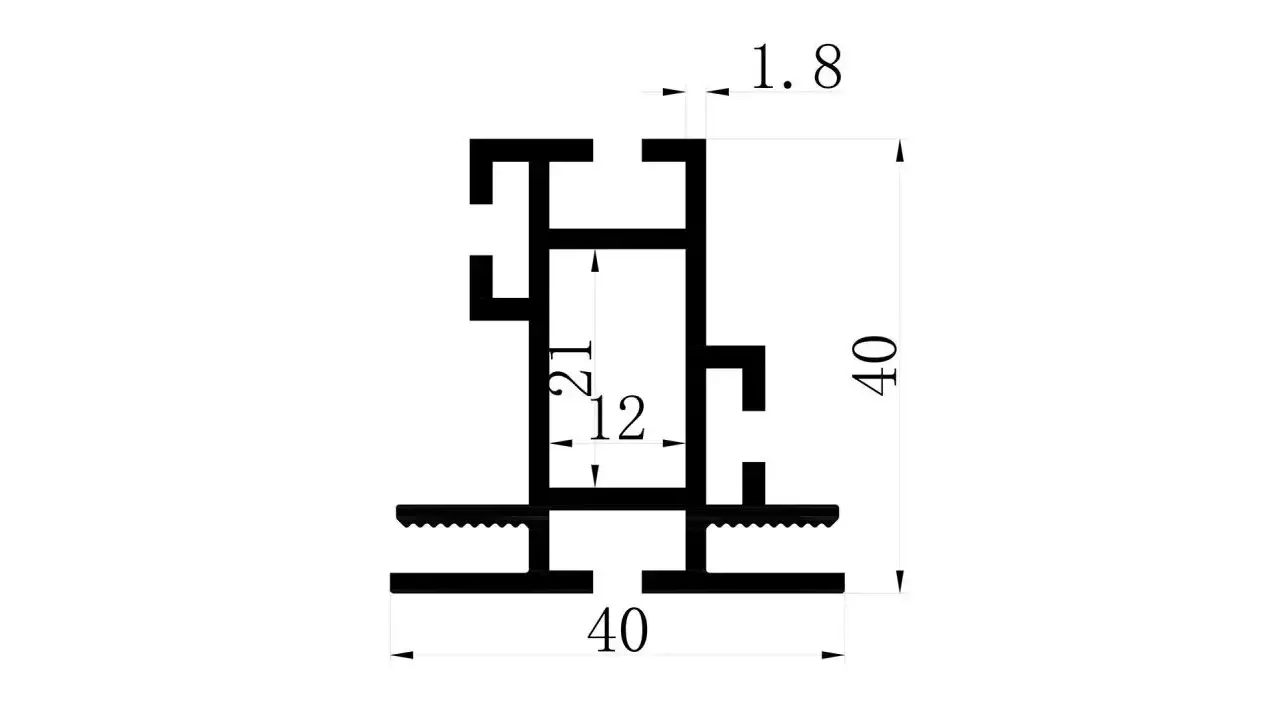

LC-DR-40B is a double-sided frame, at 40 mm depth, 1.035 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-40B be lit?
A: Yes — the 40 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
| Item number | LC-DR-40B |
|---|---|
| Depth | 40MM |
| Frame type | Double-sided frame |
| Mounting | Can stand securely with connectors. |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.035KG/M |
| LED | NO |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Non-woven fabric/kraft paper, different packaging will bring price changes |
