Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
1.401KG/M

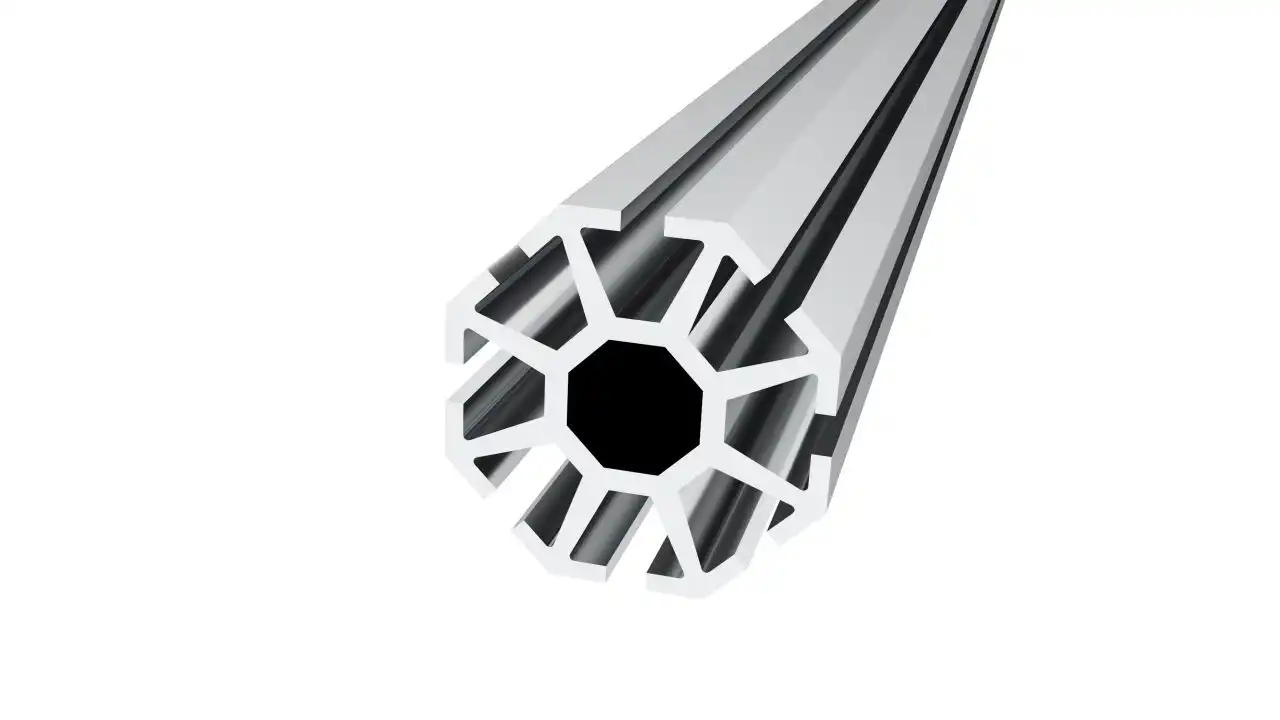

LC-P-4040D thickened reinforced exhibition aluminum profile adds thick internal support ribs while retaining standard three-way lock interface. Compared with ordinary 4040 booth frames, its load capacity is greatly improved, which can stably carry heavy machinery, hardware samples and multi-layer display counters. The three-way lock parts are completely universal without customized processing. It is very suitable for industrial equipment exhibitors, hardware brand booths and various heavy load exhibition counter frames.
This 40 mm section belongs to the exhibition family, where frames are built from straight bars, corner blocks and support pillars rather than welded boxes. The frame goes up with a hex key and comes down the same way, which is how a display ends up in a case instead of a skip.
The section is 6063-T5 aluminum and anodised after drawing, so the visible edge stays bright after repeated assembly. Corner blocks, base plates and connectors from the same programme close the frame; nothing has to be machined on site beyond cutting bars to length.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.

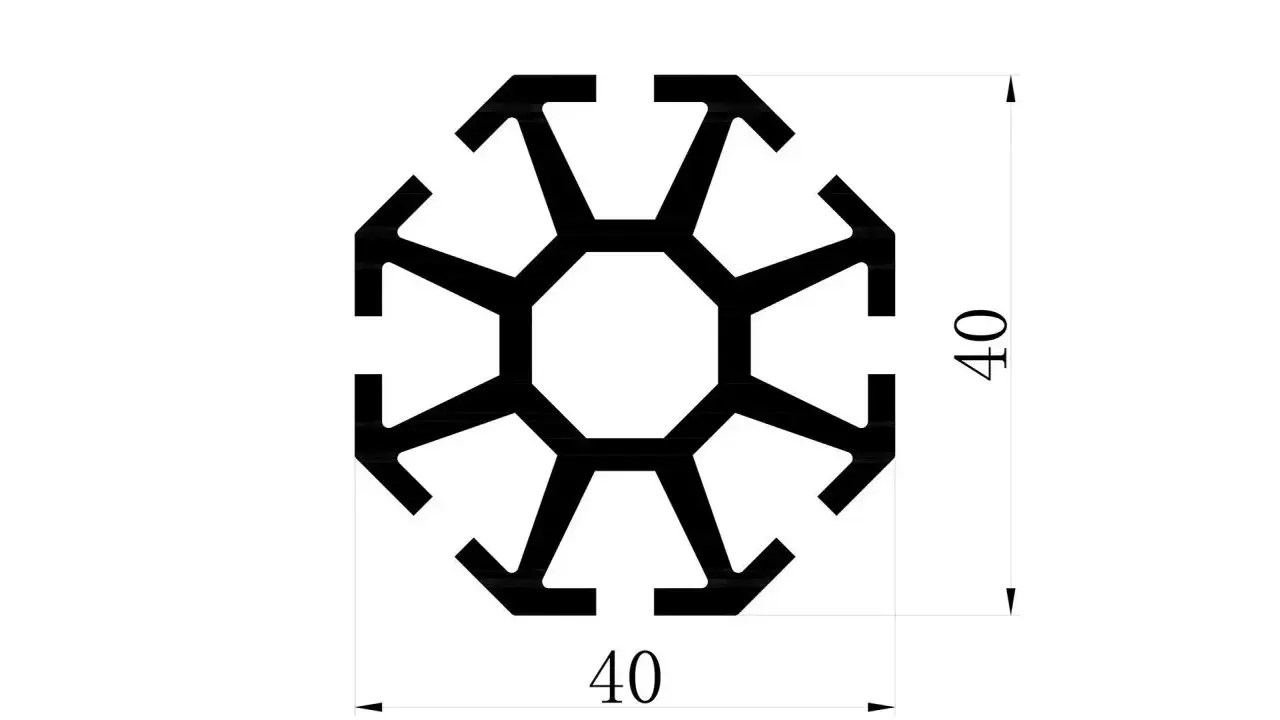

LC-P-4040D is a support Pillar, at 40 mm depth, 1.401 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-4040D be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-4040D |
|---|---|
| Depth | 40MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.401KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
