Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
1.182KG/M

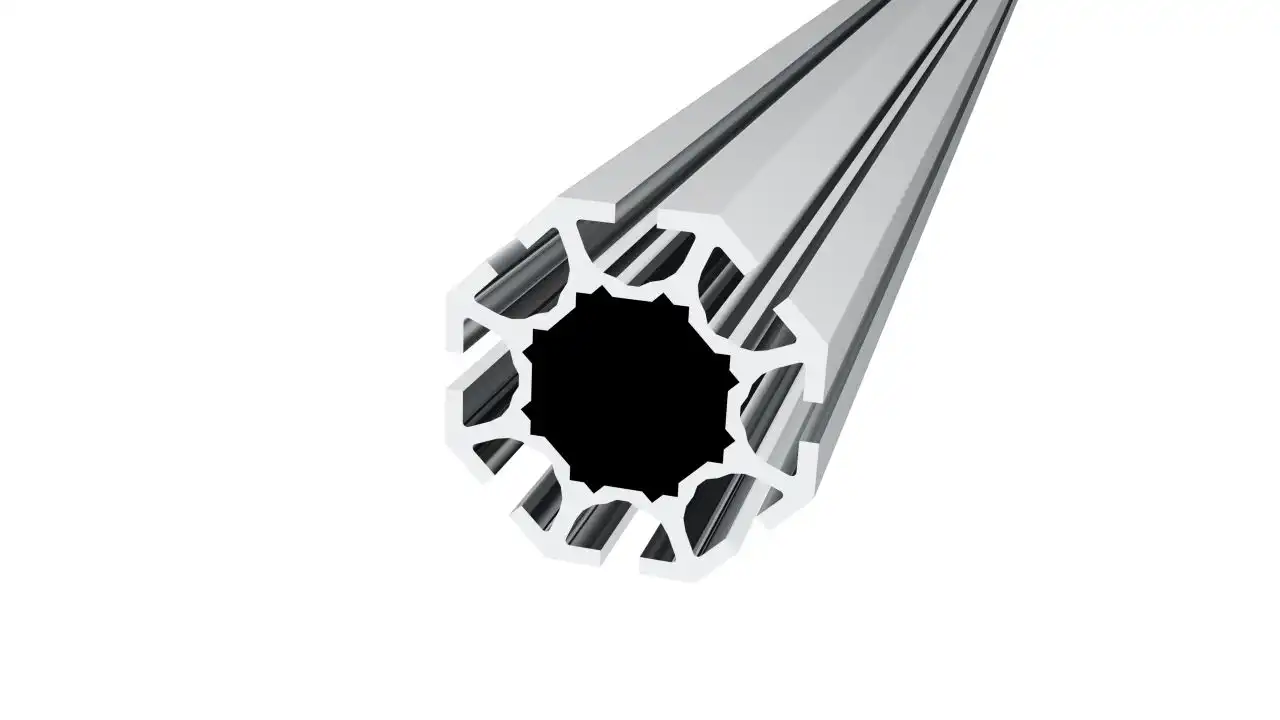

LC-P-4040E lightweight thin-wall exhibition aluminum profile keeps complete three-way lock assembly structure, and effectively reduces the overall weight of the frame. Lighter frames can significantly cut air and sea freight costs for cross-border exhibitors. A single worker can complete the whole booth assembly with matching three-way locks without heavy tools. It is ideal for cosmetics, textiles and consumer electronics brands to build lightweight temporary exhibition booths overseas.

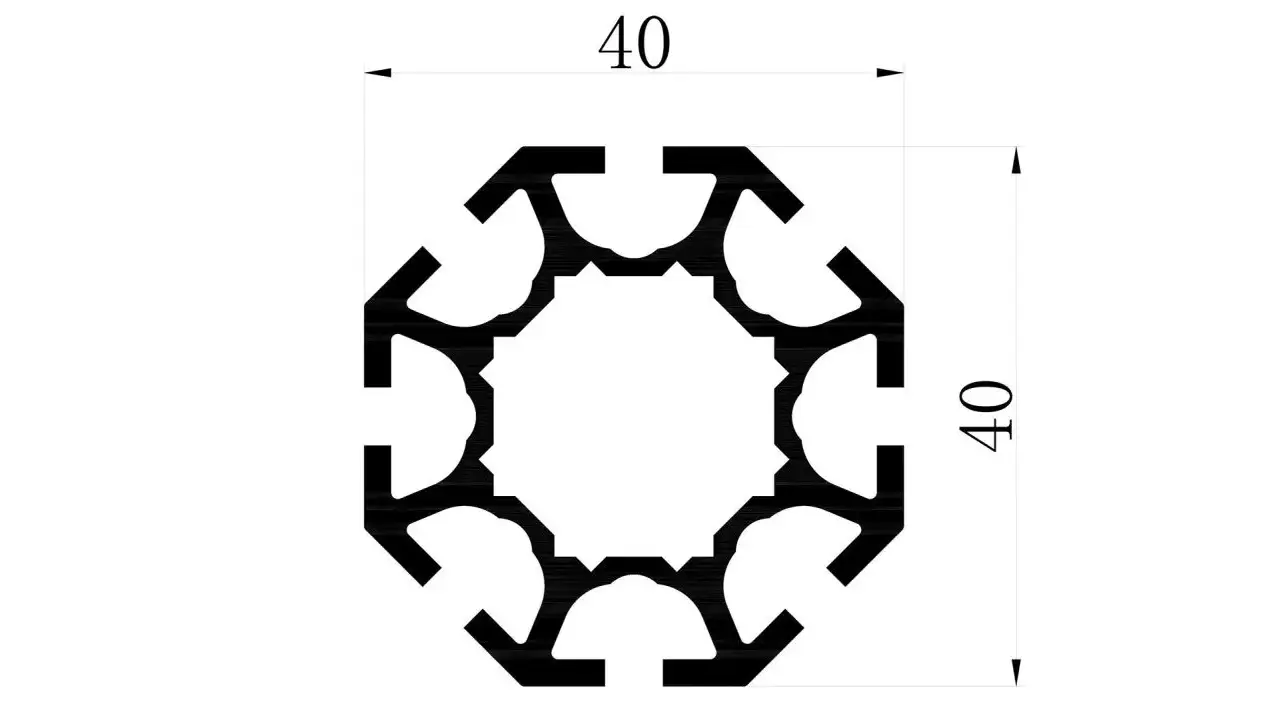

LC-P-4040E is the 40 mm bar behind modular stands: straight runs, right angles and pillars, all from the same stock. The system is modular: straight lengths, corner pieces and base plates combine, and the frame extends by adding bars rather than replacing panels.
Extruded in 6063-T5 aluminum; the visible edges are radiused so a fabric skin pulls over the frame without snagging, 1.182 kg per metre, and coating in silver, black, white or a custom colour is available. The section takes standard connectors and base plates, which is how a portable display ends up as a kit of bars, joints and one printed skin.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-4040E is a support Pillar, at 40 mm depth, 1.182 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-4040E be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-4040E |
|---|---|
| Depth | 40MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.182KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
