Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
1.029KG/M

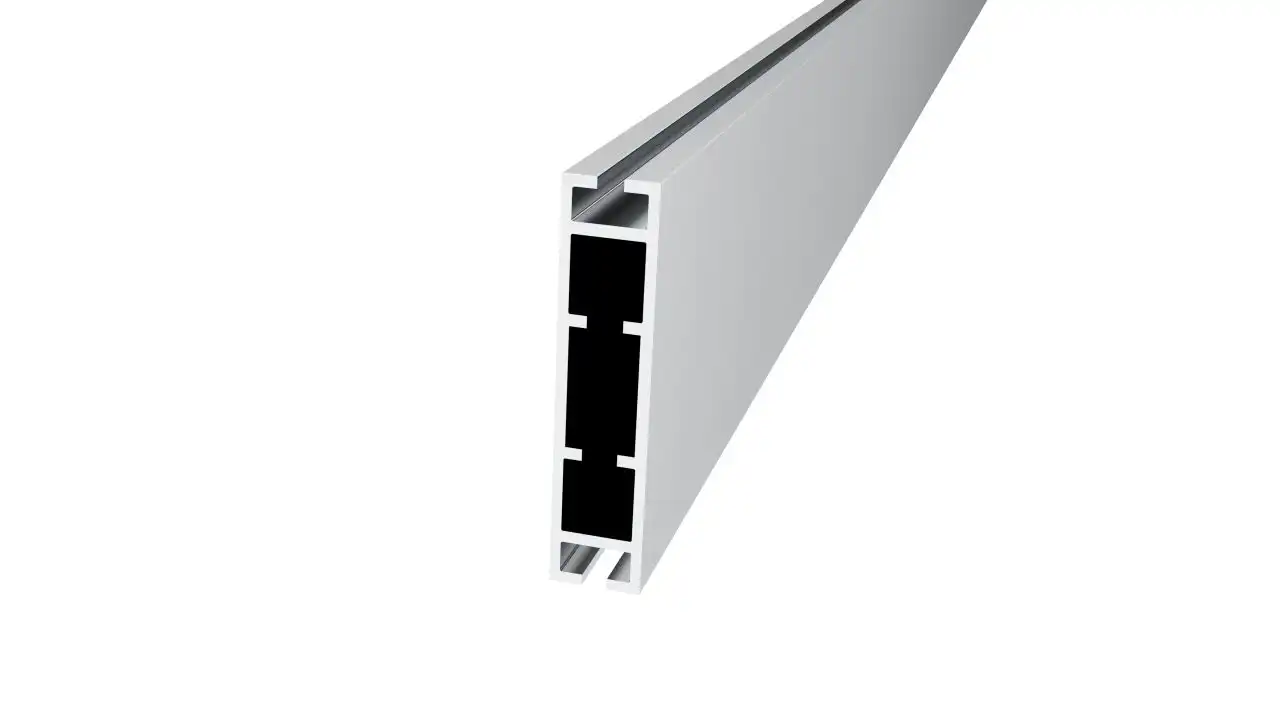

LC-P-7016A single-groove 70×16 flat exhibition border is our wide single-slot edging material for oversized single-layer fabric booth backdrops. Wider 70mm width delivers stronger anti-sagging performance compared to 5016 series flat profiles, perfectly paired with dedicated mini three-way locks for quick field assembly. Only one clamping groove on the front side for single fabric tension installation, keeping a neat minimalist border appearance without redundant gaps. Ideal for large single-brand exhibition background walls, conference stage backdrops and mall long-term display signage that only requires one layer of printed fabric.

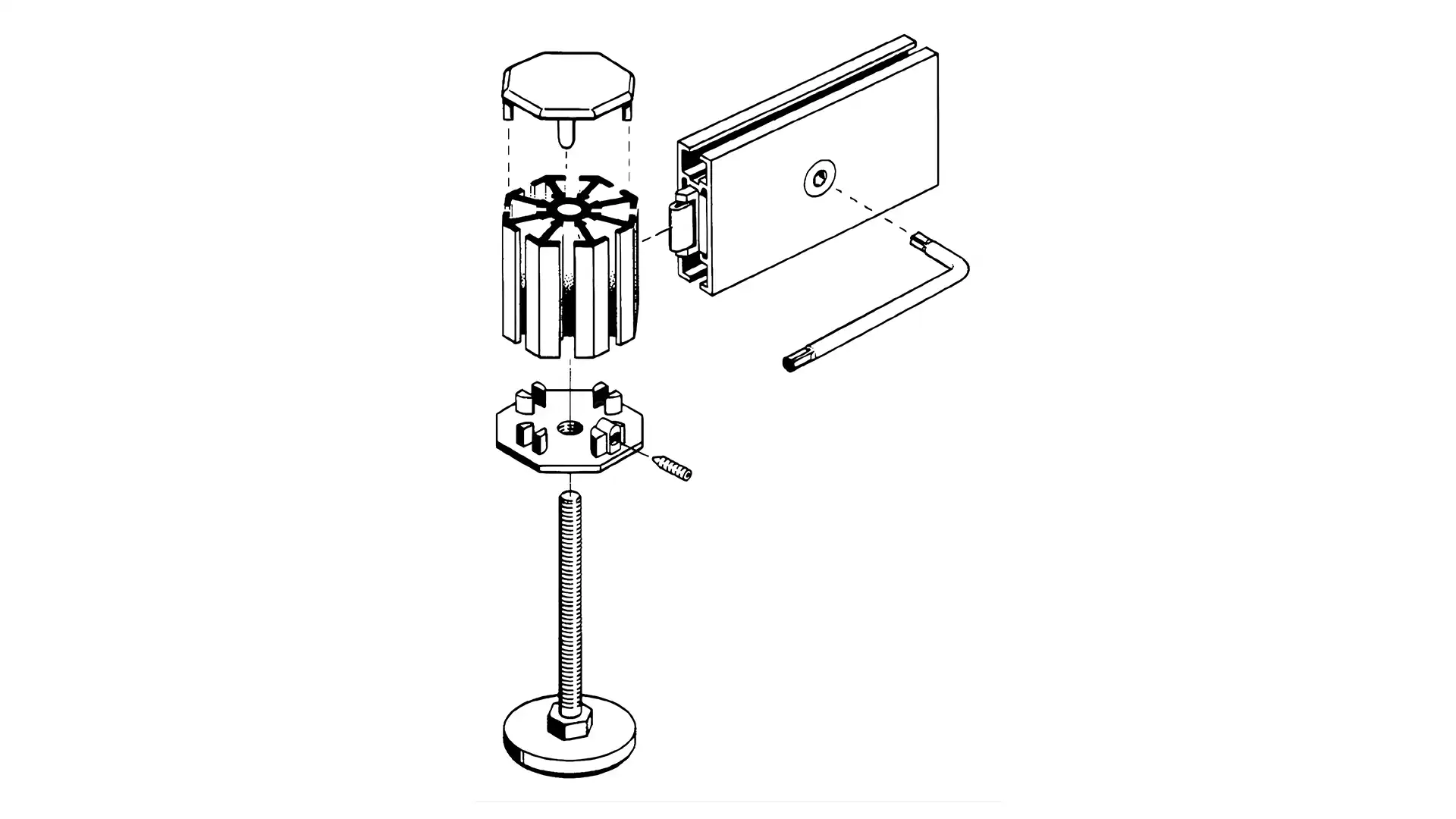

At 16 mm, LC-P-7016A gives a portable system its stiffness without weight — the sort of section that lets one person raise a 3 × 2 m backwall on a show floor. The system is modular: straight lengths, corner pieces and base plates combine, and the frame extends by adding bars rather than replacing panels.
Pillar and rail share the same wall thickness, which is what keeps a mixed build square without shimming. It mixes with the SEG fabric frames on the same skeleton, so a stand can carry printed skins and hard panels together.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-7016A is a support Pillar, at 16 mm depth, 1.029 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-7016A be reused for a different booth?

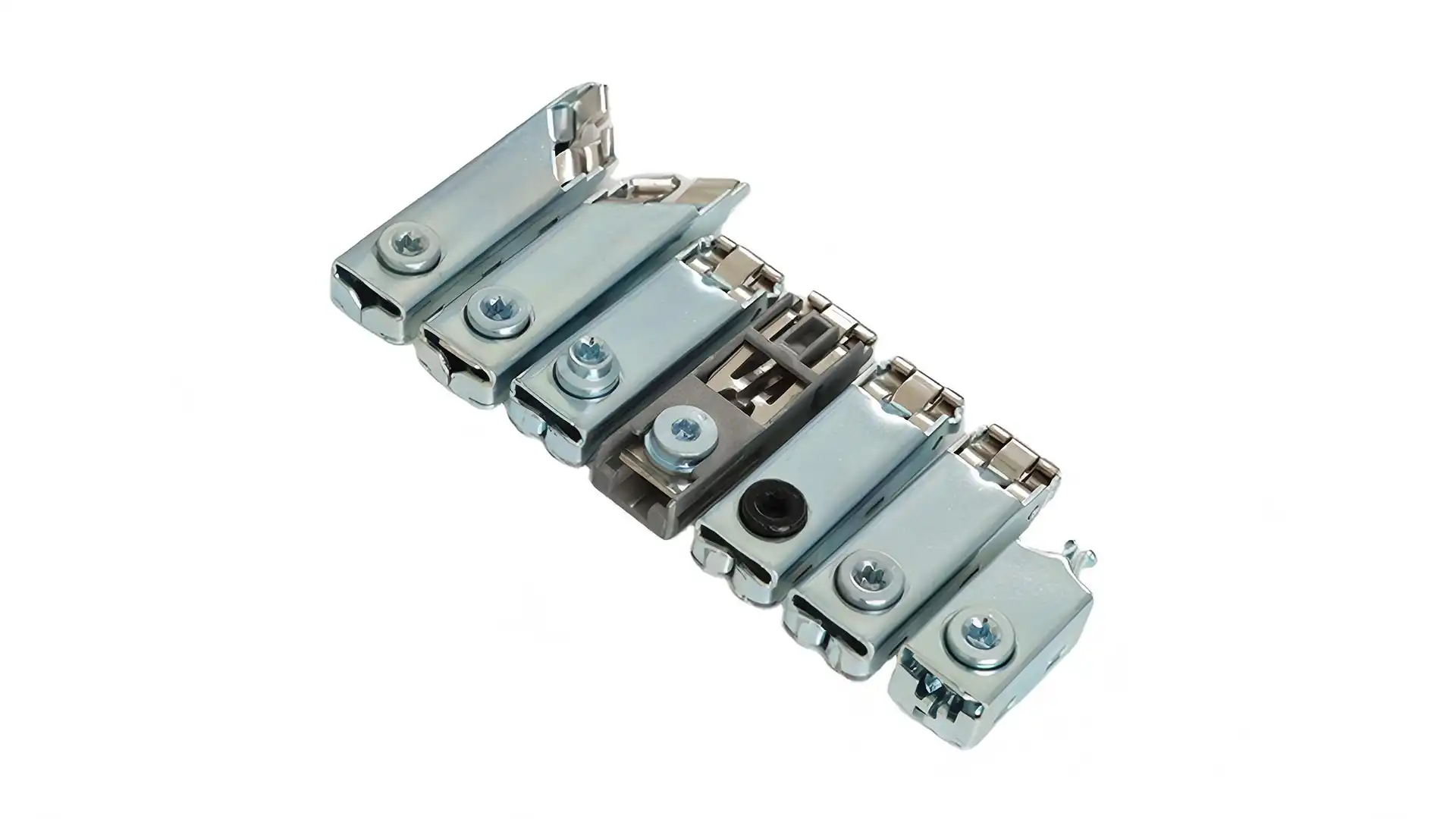

A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.

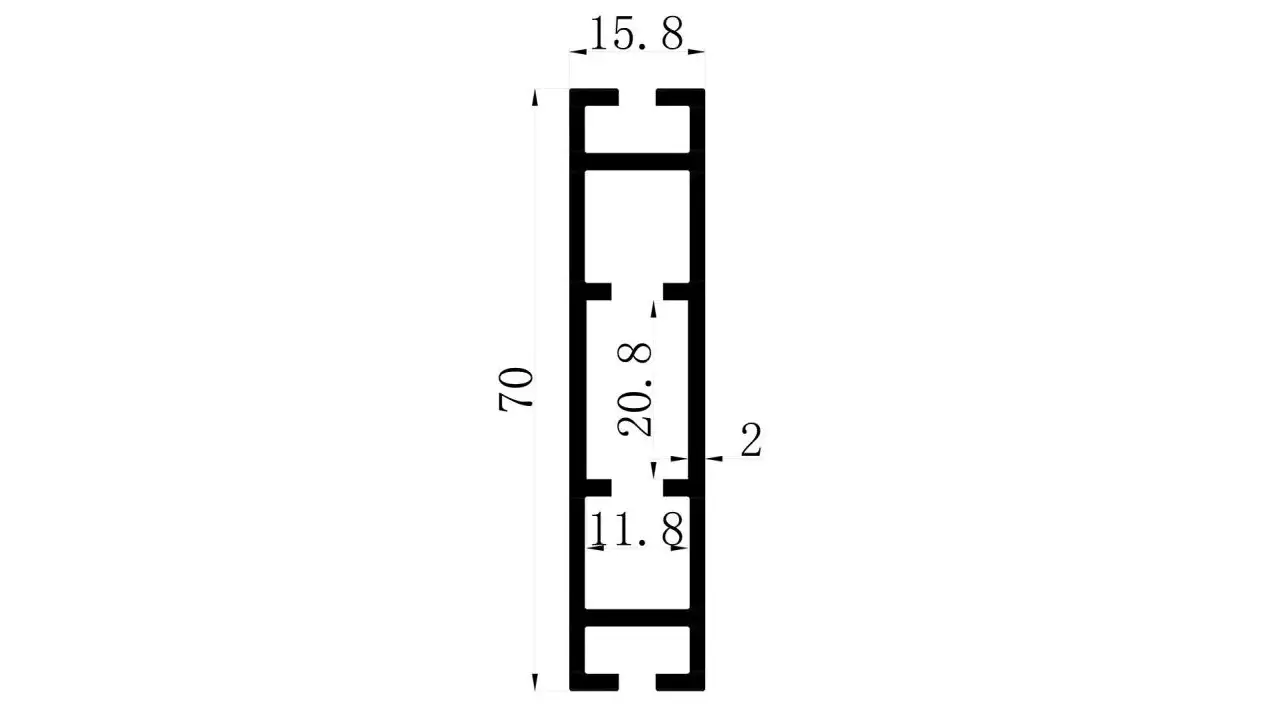

| Item number | LC-P-7016A |
|---|---|
| Depth | 70*16MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.029KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
