Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.588KG/M

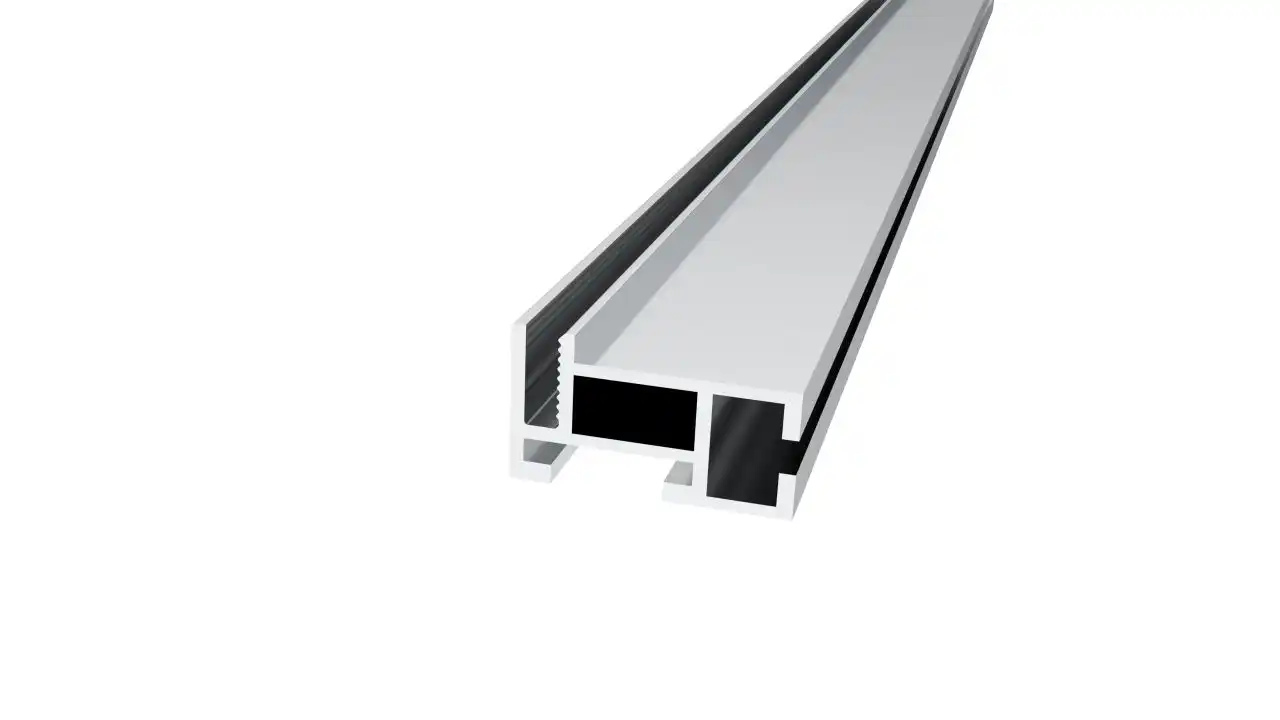

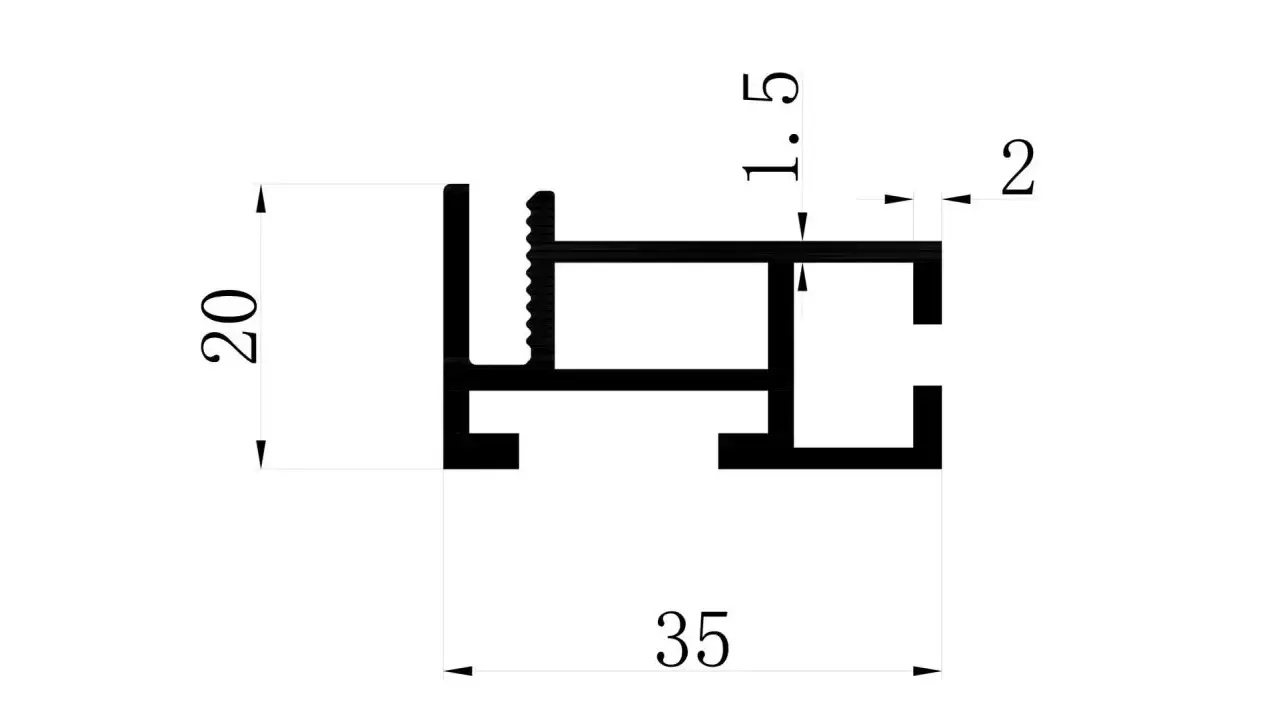

The LC-SR-20B is a 20mm deep single-sided SEG aluminum profile featuring a reinforced internal structure for enhanced rigidity in non-illuminated display systems. While maintaining the same slim 20mm exterior depth as the 20A variant, its thicker internal webs deliver improved strength and resistance to bowing, making it suitable for larger-format wall graphics and long-span exhibition backdrops. Manufactured from premium 6063-T5 aluminum, it ensures consistent straightness and tight corner fits for a professional, high-end finish. Ideal for large non-lit advertising walls, retail store branding, conference backdrops and trade show exhibit systems.
LC-SR-20B covers the narrow end of the single-sided range at 20 mm — shallow enough for a framed poster above a counter, deep enough to hide the SEG bead behind the fabric. One face, one graphic: there is no second panel, diffuser or light cavity, which is why this profile is the cheapest way to hold a silicone-edge fabric taut on a flat wall.
The extrusion is 6063-T5 aluminum with a bead channel cut after anodising, so the groove stays clean and the fabric edge does not catch. Corner pieces and connectors from the same family close the frame with a friction fit, so a 1 × 2 m panel assembles on site with an Allen key and no welding.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-20B is a single-sided frame, at 20 mm depth, 0.588 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-20B take LED lighting?
A: No — LC-SR-20B is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-20B |
|---|---|
| Depth | 20MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.588KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
