Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.727KG/M

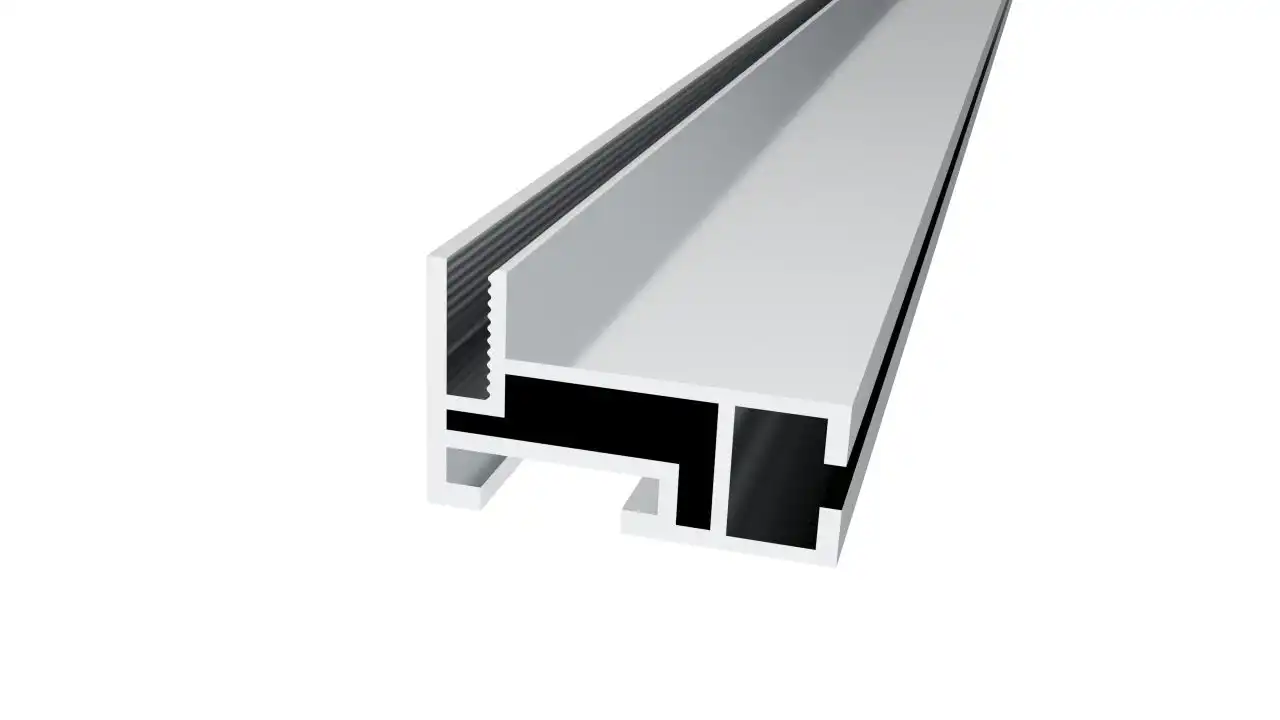

The LC-SR-25A is a robust 25mm deep single-sided SEG aluminum profile designed for high-quality non-illuminated fabric display systems. With its heavy-gauge 25mm structure, it delivers superior structural strength for large-format wall graphics, exhibition backdrops and retail visual merchandising displays where lighting is not required. Manufactured from 6063-T5 aluminum alloy, it maintains exceptional straightness and dimensional stability for seamless, professional-looking frame assemblies. The integrated silicone edge (SEG) groove holds fabric graphics taut for a perfectly flat, frameless appearance that puts full focus on your printed content.
At 25 mm deep, LC-SR-25A sits in the slimmest bracket of the range — the profile we quote for poster swaps in retail aisles, lift-lobby panels and office wayfinding, where a 2 cm shadow line around the graphic is already too much. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.
Ribs sit behind the visible face rather than in the channel, which is why the frame stays flat and the silicone edge seats without pinching. Corner pieces and connectors from the same family close the frame with a friction fit, so a 1 × 2 m panel assembles on site with an Allen key and no welding.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-25A is a single-sided frame, at 25 mm depth, 0.727 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-25A take LED lighting?
A: No — LC-SR-25A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-25A |
|---|---|

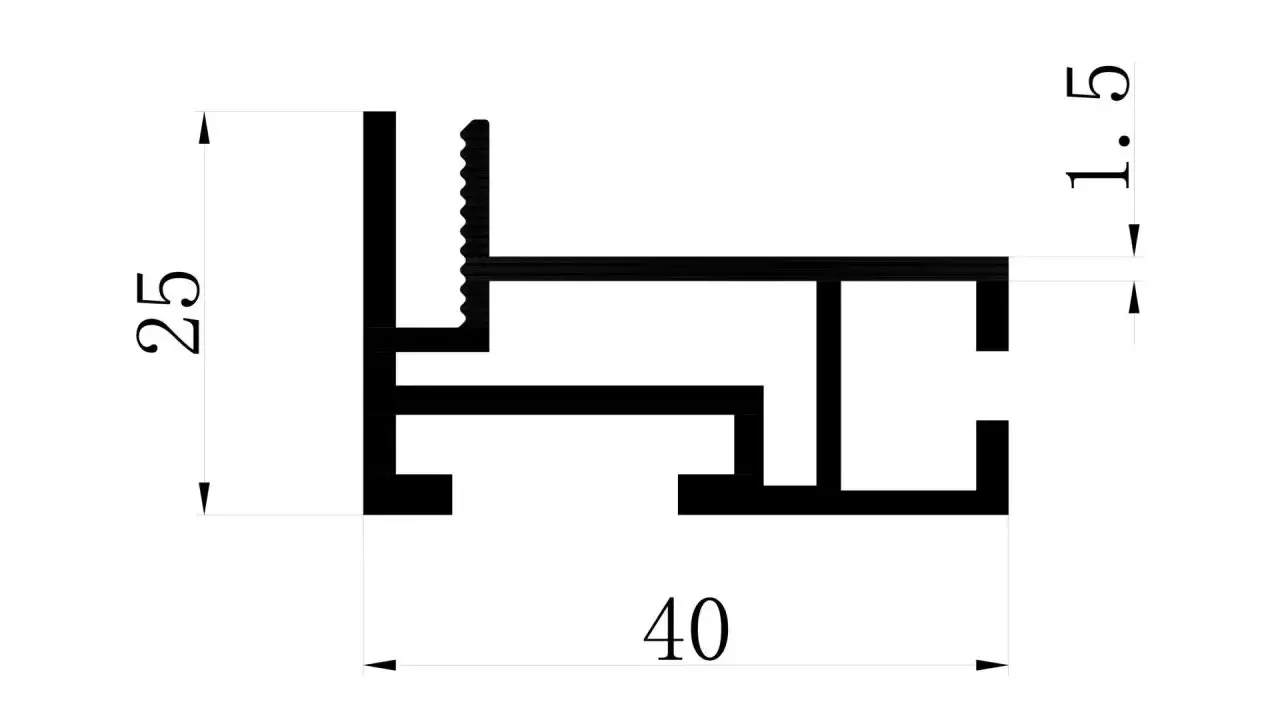

| Depth | 25MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.727KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
