Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
2.859KG/M

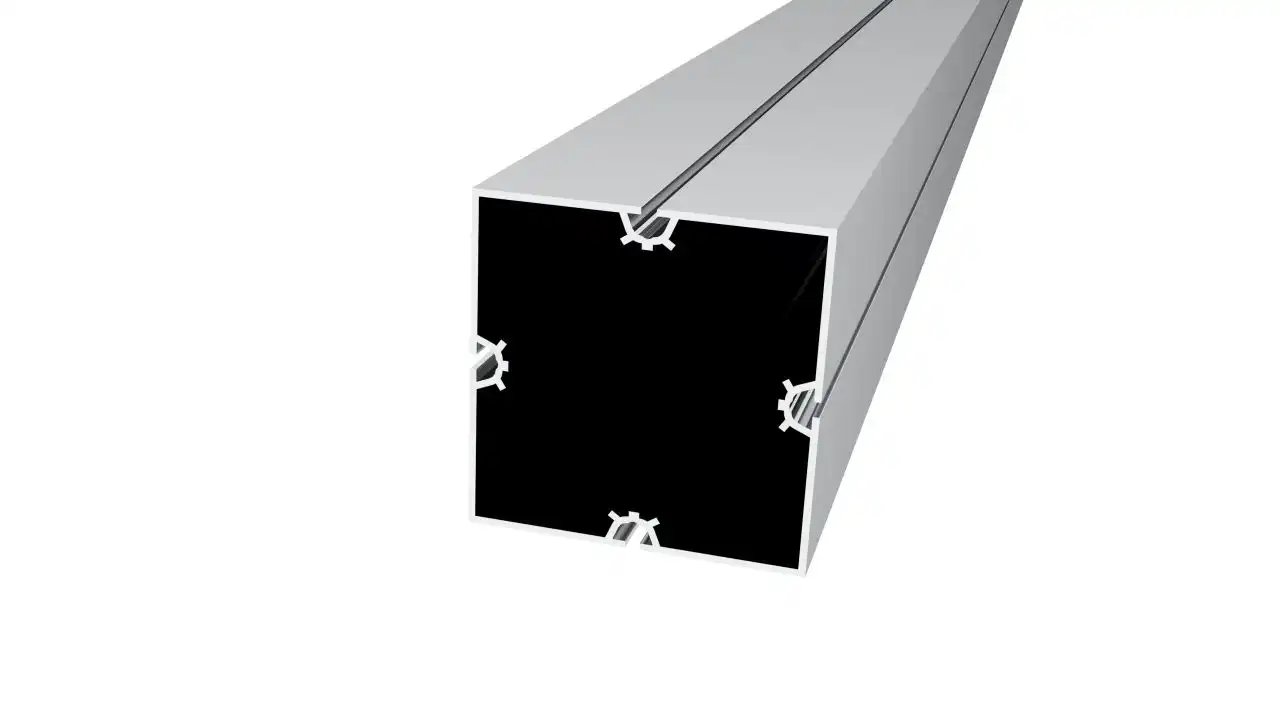

LC-P-100100A engineering-grade large square exhibition profile is developed for permanent fixed exhibition pavilions, with fully thickened reinforced three-way lock accessories. High-hardness aluminum alloy raw materials are adopted to resist outdoor wind, rain and ultraviolet aging all year round. The reinforced three-way lock connection will not loosen after long-term static load, reducing later maintenance costs. It is widely used in industrial park fixed exhibition halls and scenic spot permanent display pavilions.
LC-P-100100A is a 100 mm exhibition profile: the frame is designed to be assembled, moved and rebuilt, which is what trade stands and portable displays need. Bars join through corner blocks and connectors, so the same stock can be re-cut into a different booth layout next season instead of being scrapped.
Extruded in 6063-T5 aluminum; the visible edges are radiused so a fabric skin pulls over the frame without snagging, 2.859 kg per metre, and coating in silver, black, white or a custom colour is available. It is compatible with the SEG fabric frames and the T-slot family, so a stand can mix fabric panels with hard panels on one skeleton.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-100100A is a support Pillar, at 100 mm depth, 2.859 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-100100A be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-100100A |
|---|---|
| Depth | 100MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 2.859KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
