Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
1.754KG/M

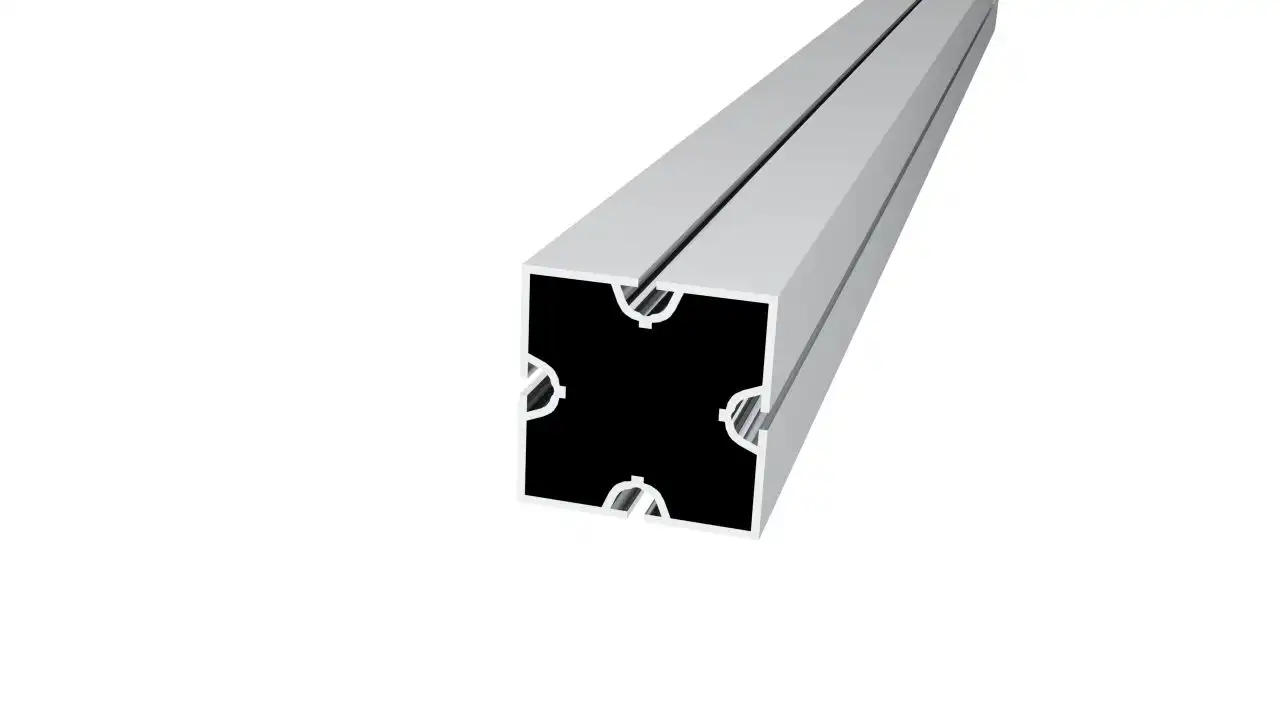

LC-P-6060A large 60×60 square exhibition profile is used as the core load-bearing frame of double-deck exhibition booths, and needs to be matched with thickened heavy-duty three-way locks. Ordinary small three-way locks cannot bear the weight of the upper floor, while the supporting reinforced locks provide stable vertical support. The oversized square cross-section ensures the overall structural safety of the two-story display space, and is an essential frame material for high-end brand double-deck booths and multi-layer activity stage brackets.
LC-P-6060A is the 60 mm bar behind modular stands: straight runs, right angles and pillars, all from the same stock. Joint geometry is what makes the system reusable — bars are cut, not welded, so a rebuild is a new cut list rather than a new order.
Extruded in 6063-T5 aluminum, anodised silver by default and available in black, white or a custom RAL when the booth palette calls for it. It mixes with the SEG fabric frames on the same skeleton, so a stand can carry printed skins and hard panels together.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.

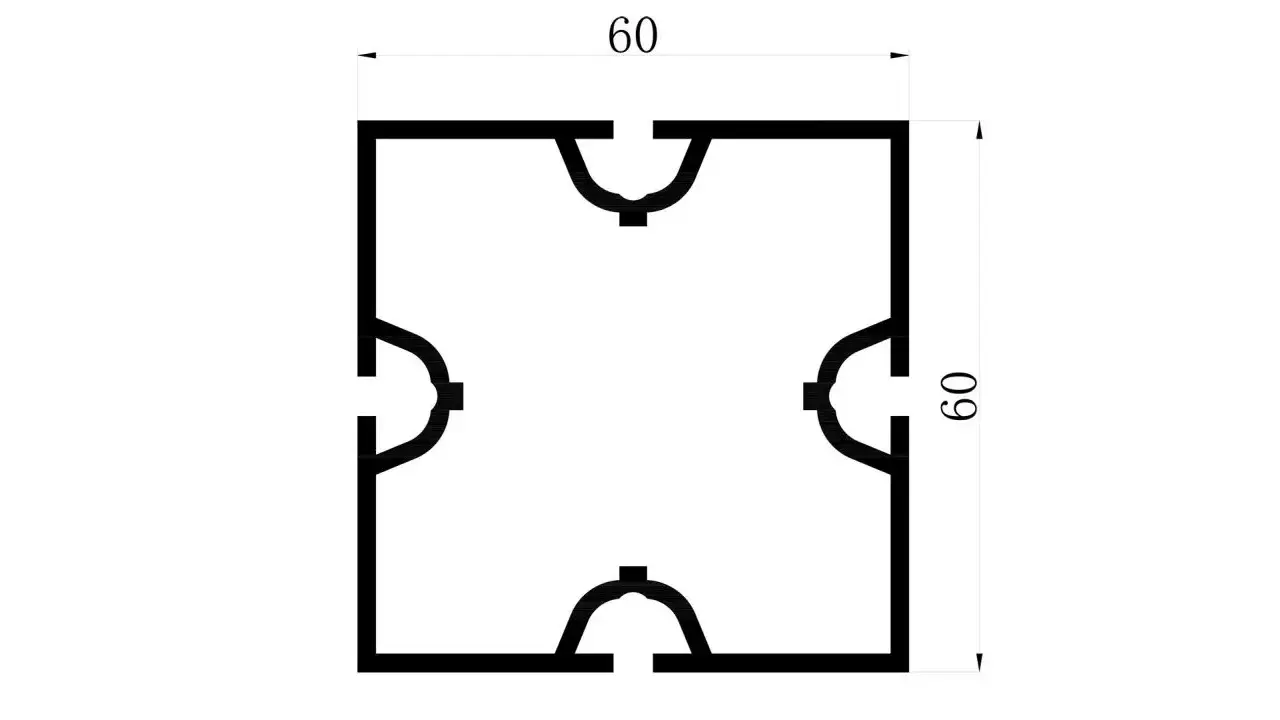

LC-P-6060A is a support Pillar, at 60 mm depth, 1.754 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-6060A be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-6060A |
|---|---|
| Depth | 60MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.754KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
