Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
3.382KG/M

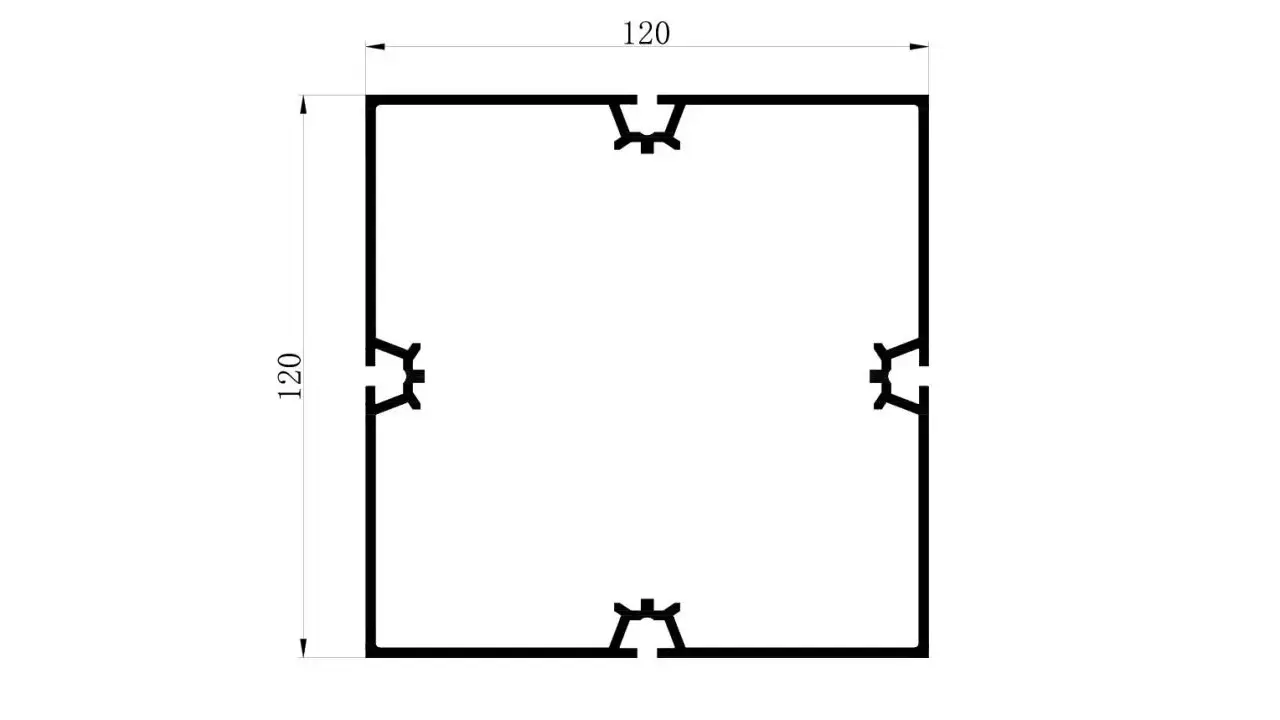

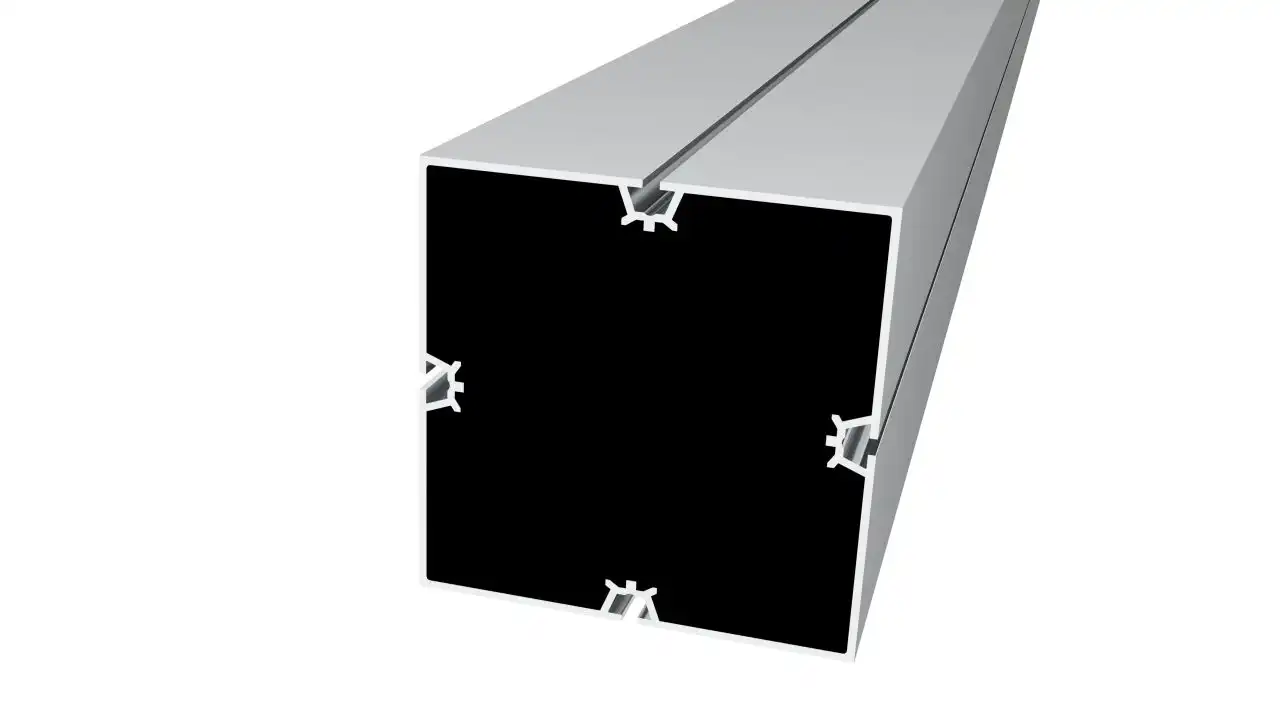

LC-P-120120A oversized 120×120 heavy exhibition aluminum profile is our top-spec load-bearing frame material for super-large comprehensive exhibition projects, supporting customized thickened three-way lock connectors. The maximum cross-section thickness provides ultimate structural stability, which can be used for super-long span exhibition pavilions and multi-story large exhibition building main frames. It is mostly adopted by large exhibition engineering companies to undertake national large-scale comprehensive expo construction projects.
This 120 mm section belongs to the exhibition family, where frames are built from straight bars, corner blocks and support pillars rather than welded boxes. It is meant to travel — light enough to crate, and the joints are designed to be taken apart and re-tightened on site.
The profile is drawn in 6063-T5 aluminum, 3.382 kg per metre, with a groove that takes a silicone edge or a fabric skin depending on the system you are building. It is compatible with the SEG fabric frames and the T-slot family, so a stand can mix fabric panels with hard panels on one skeleton.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-120120A is a support Pillar, at 120 mm depth, 3.382 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-120120A be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-120120A |
|---|---|
| Depth | 120MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 3.382KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
