Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
2.221KG/M

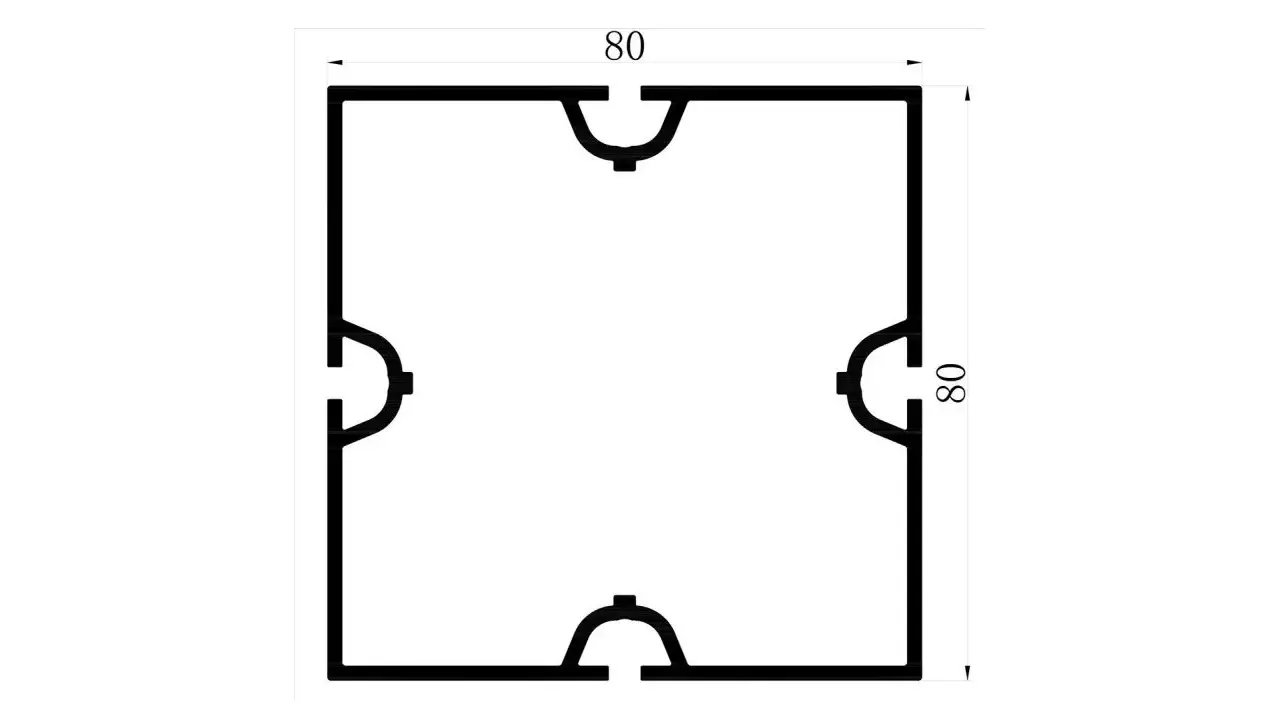

LC-P-8080A 80×80 super heavy-duty square exhibition profile is designed as the main vertical support column for oversized indoor and outdoor exhibition booths, equipped with ultra-thick customized three-way lock pieces. The extremely thick alloy wall has excellent wind resistance and load capacity, and can be applied to outdoor giant exhibition pavilions and high-rise double-deck booth main columns. It retains the fast splicing advantage of three-way locks while meeting the high safety standards of large exhibition engineering.
LC-P-8080A is a 80 mm exhibition profile: the frame is designed to be assembled, moved and rebuilt, which is what trade stands and portable displays need. The system is modular: straight lengths, corner pieces and base plates combine, and the frame extends by adding bars rather than replacing panels.
Extruded in 6063-T5 aluminum, anodised silver by default and available in black, white or a custom RAL when the booth palette calls for it. Base plates, corner blocks and connectors come from the same programme; nothing needs machining on site.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-8080A is a support Pillar, at 80 mm depth, 2.221 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-8080A be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-8080A |
|---|---|
| Depth | 80MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 2.221KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
